Siberia Pro Kabelkit 1x DT Connector für DT2 und DT4 Steckkontakte

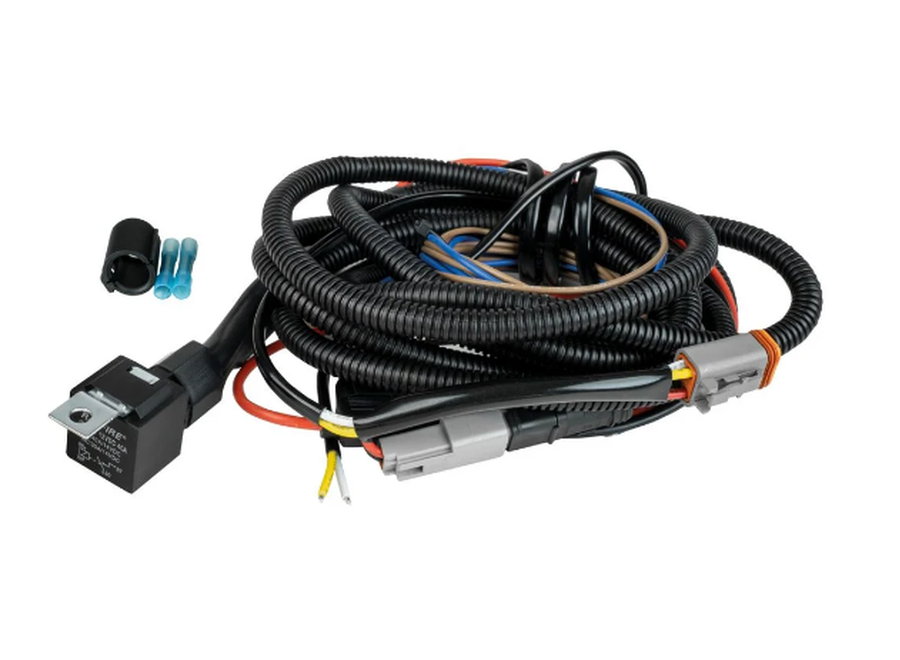

Siberia Pro cable kit 1x DT connector for DT2 and DT4

Up to 156W via DT connector (or up to 360W via shortened direct connection without DT connector)

Product number: 208-270477

Description

Cable kit for connecting a single driving light.
With the cable design in AWG12, the cable kit is also ideally suited to controlling powerful LED headlights.
The end piece is a DT2 plug, which is also fitted with an adapter to DT4.
This means that both typical connection types can be used.

technical details:
Lead to the relay:
Cable black / red AWG 12 approx. 60 cm secured with a 30A fuse
Signal input from high beam cable blue approx. 200cm
Relay: 12V/40A / NO 40A/14VDC / NC 30A/14VDC
Output: cable black / red AWG 12 approx. 300 cm (in corrugated protective tube)
Cable end Deutsch DT2 connector
Plus adapter plug from plug DT2 to DT4 approx. 15 cm
The two additional strands of the DT4 plug are routed from the adapter plug as a cable with a length of approx. 130cm and an open end.
The position light can be connected via these two additional cables.
Depending on the connection point and power consumption of the position light, this can either be connected directly to the factory position light or should also be connected via a relay kit.
