TJM Höherlegungsfahrwerk circa 35 bis 40 mm für die Mercedes X-Klasse

TJM Suspension (35-40 mm lift) for the Mercedes X-Class

Standard configuration - for vehicles with no or only light additional load

Product number: TMX01-FWK

Oder stellen Sie sich Ihre Wunschfahrwerk mit unsere Konfigurator zusammen.

Konfigurator starten

Description

A TJM 4x4 Equipped suspension ist not just an ordinary lift kit, but a true driving upgrade of your X-Class. The standard suspensions are primarily optimised for the unloaded condition of the vehicle. This quickly pushes the standard chassis to its limits. With different spring and damper designs, the TJM chassis can be optimally adapted to your individual loading weight, including an appropriate lift adjustment. The kit offered here is designed for additional loads of 0 to 50 kg at the front. At the rear axle it is optimised for additional loads from 0 to 250 kg. They reach a lift of about 35 to 40 mm. As an alternative to this ready-made configuration, you have the option to select other settings using our suspension kit configurator.

TJM is one of the oldest and most popular suspension suppliers in Australia. TJM suspension components are designed and manufactured for exceptionally high loads and durability. They have been proving their ability to perform under the tough conditions of the Australian outback for decades. Of course, Ullstein Concepts provides a TÜV certificate for all suspension kit parts ,thus ensuring a hassle free approval.

The TJM gas pressure shock absorbers of the XGS model series used here have a generously dimensioned 40 mm piston body with a strong 20 mm chrome piston rod. The larger oil volume and the high-quality Teflon seals guarantee a long service life.

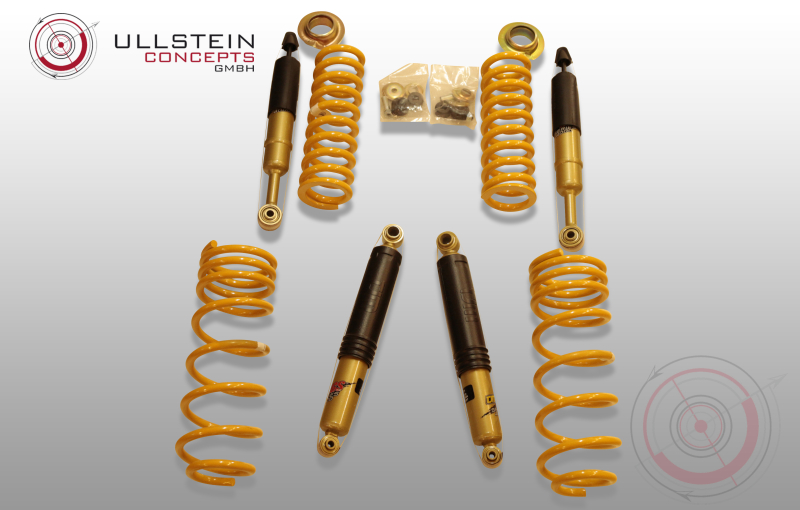

Scope of delivery:
2 TJM XGS coil springs for the front axl (for additional loads from 0 to 50kg),
2 TJM XGS coil springs for the rear axle (for additional loads from 0 to 50kg),
2 strong TJM XGS shock absorbers for the front axle (version XS)
2 strong TJM XGS shock absorbers for the rear axle (version XS)
TÜV certificate and installation instructions
Optionally you can supplement the suspension kit with TJM rubber for Top strut mount.

Documents

Tjm Logo

Manufacturer

TJM 4x4 - A member of Aeroklas Asia Pacific Group
Address:
17 Johnstone road
QLD 4500 Brendale
Australien www.TJM.com.au
International identifier if deviating from SKU

Respective EU distributor:Ullstein Concepts GmbH Bahnhofstr. 20 85416 Langenbach Deutschland mail@ullsteinconcepts.com
