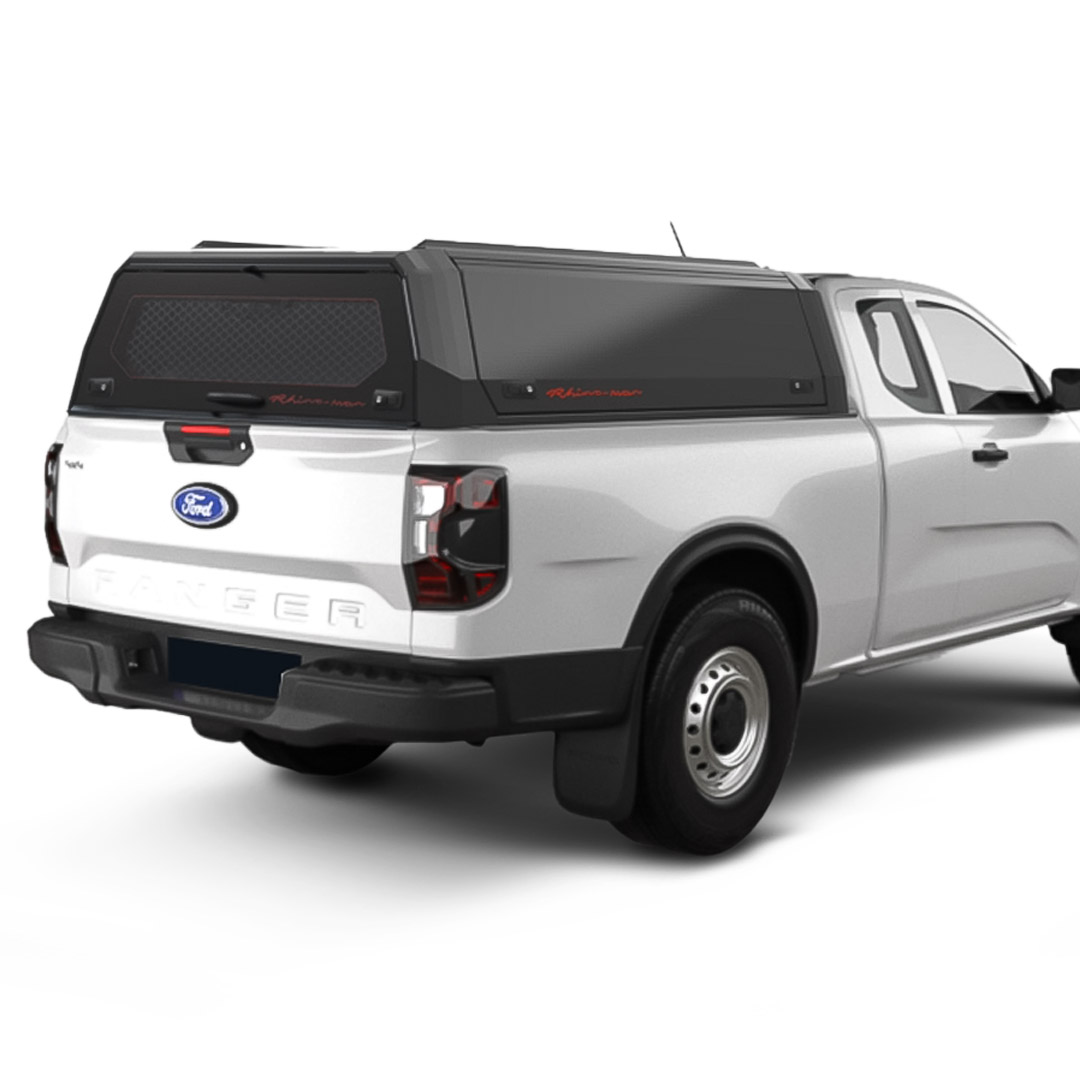

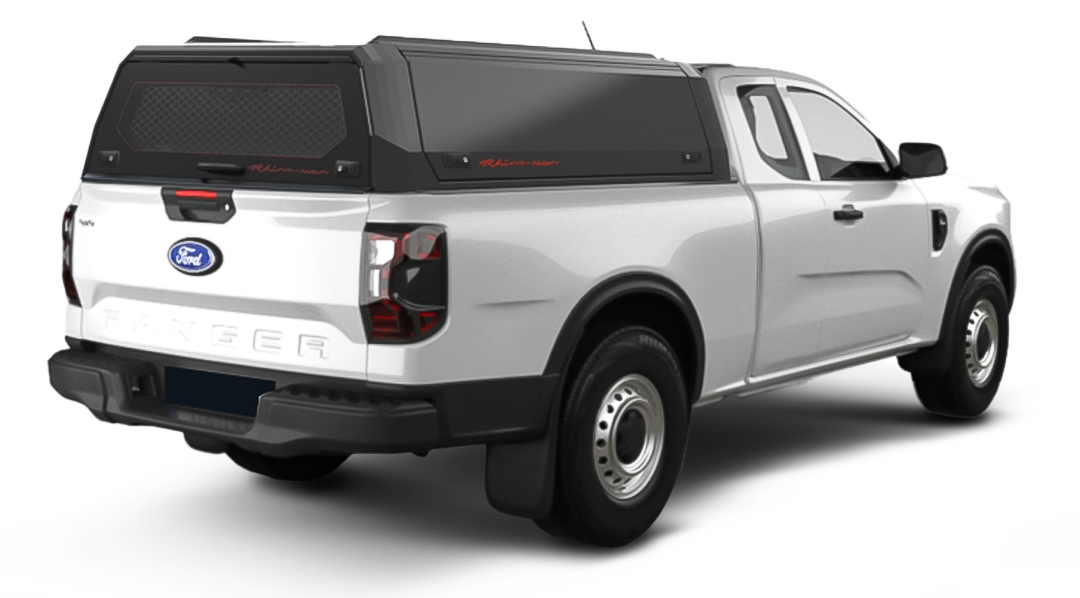

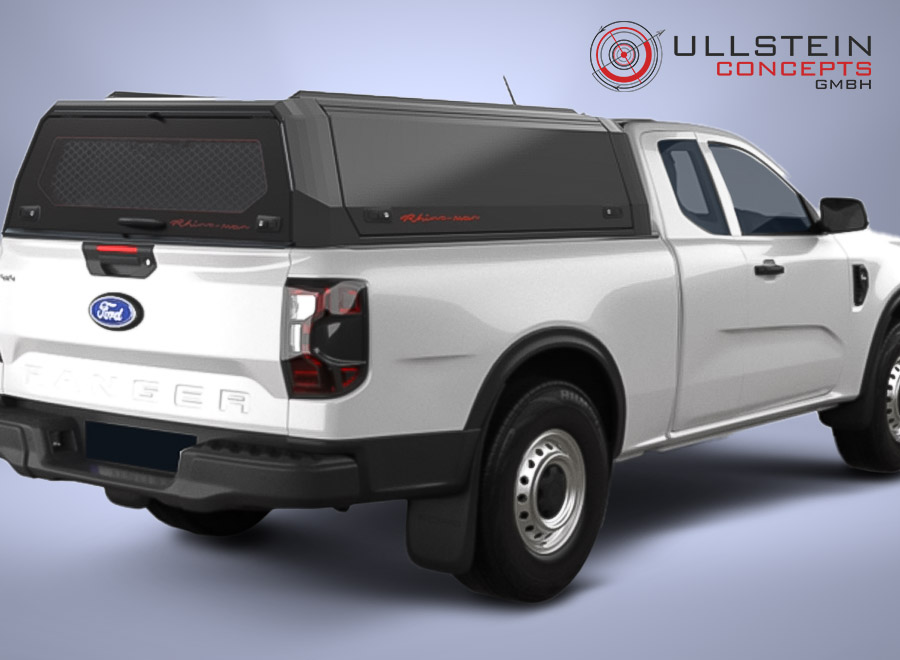

Hardtop Rhinoman XPEDITION All Black (with ABE) with gullwing doors

Rhinoman hardtop for the Ford Ranger from 2023 extra cab - XPEDITION variant with gullwing doors

The aluminium hardtops from Rhinoman are made for heavy duty and high roof loads of up to dynamic 250 kg. In addition to the functional aspects, Rhinoman has also succeeded in creating a striking design with the current model series, which harmonises with the vehicle. This makes it radically different from the usual box outline of hardtops in the same category.

Looking further into detail, the aluminium canopy impresses with the high-quality implementation of the edging and welding work, as well as the attention to detail in workmanship, which sets the Rhinoman apart from other heavy-duty hardtops. Thanks to the aluminium construction, the hardtop remains lightweight at approx. 75 kg despite its robustness.

With a wide range of accessories - such as roof racks, roof tents and compartments in the side flaps - the hardtop can be extended flexibly.

Whether rough terrain or tough work assignments - despite its neat design, the Rhinoman canopy is made for extreme conditions. This makes it perfect for adventurers and craftsmen alike.

The Xpedition (XP) has bonded toughened rear glass.

More windows needed? Then it's worth taking a look at the version of the Xpedition (XP) hardtop with integrted side sliding windows in the gullwing doors.

Features:

• Full automotive grade aluminium construction
• Rounded frame corners
• Full roof rails
• Bonded toughened rear glass
• Cab side sliding window
• Dust proof key-alike locks
• 250 kg load rating (or as per OEM specification, whichever is less)
• Integrated airflow vent
• Legendary durability
• LED light and bracket included
• Numerous optional extras
• Including ABE (general operating licence)


Mounting:
The Ford Ranger hardtop from Rhinoman is not supplied as a kit, but directly as a fully assembled unit, which saves time during assembly.
To guarantee a stable hold, the hardtop is mounted to the factory-fitted screw connections of the lashing eyes using the included retaining struts. This means that the forces are not transferred to the edge of the platform, but directly to the reinforced areas of the cargo bed.

On the current Ford Ranger, the hardtop is mounted on the plastic edge protection on the edge of the platform.

Fits without additional material for Ford Ranger extra cab Model variants: XL - XLT - Limited - Raptor (without factory bracket)
For vehicles with factory plastic styling bar, an additional plastic cover is required for the platform edges. Applies to model variants: Wildtrak - Wildtrak X - MS-RT as well as Tremor and Raptor with optional bracket.


Please note: According to the vehicle manufacturer's dealer information 23-7044, the underside of the truck bed must be fitted with a truck bed reinforcement 770440R23 if a load is applied to the edge of the truck bed. Please note that this equipment is not included in the delivery. As an alternative to the solution offered by the vehicle manufacturer, we offer the AERO J-Brace Kit as an optional extra.
