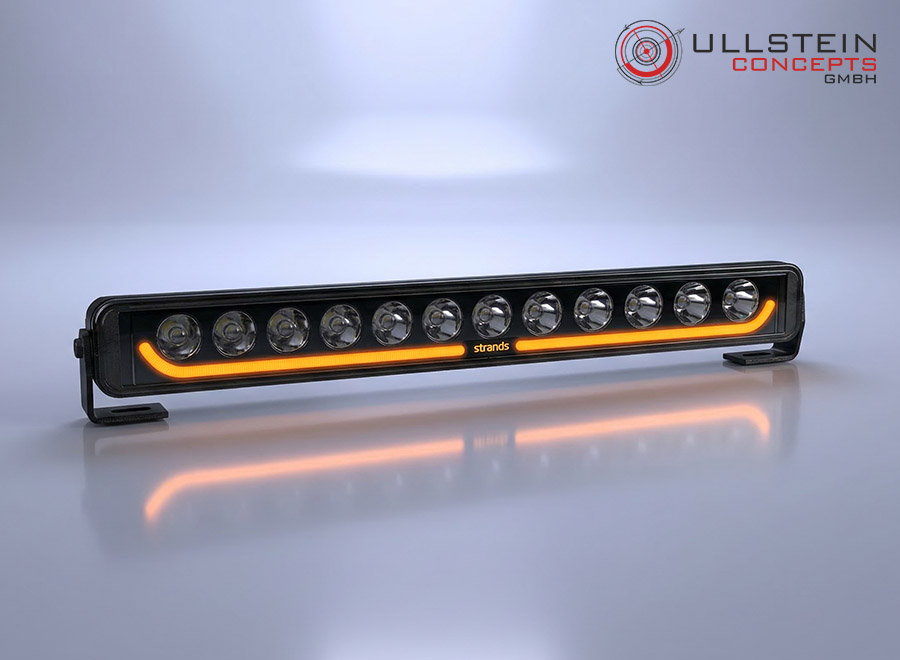

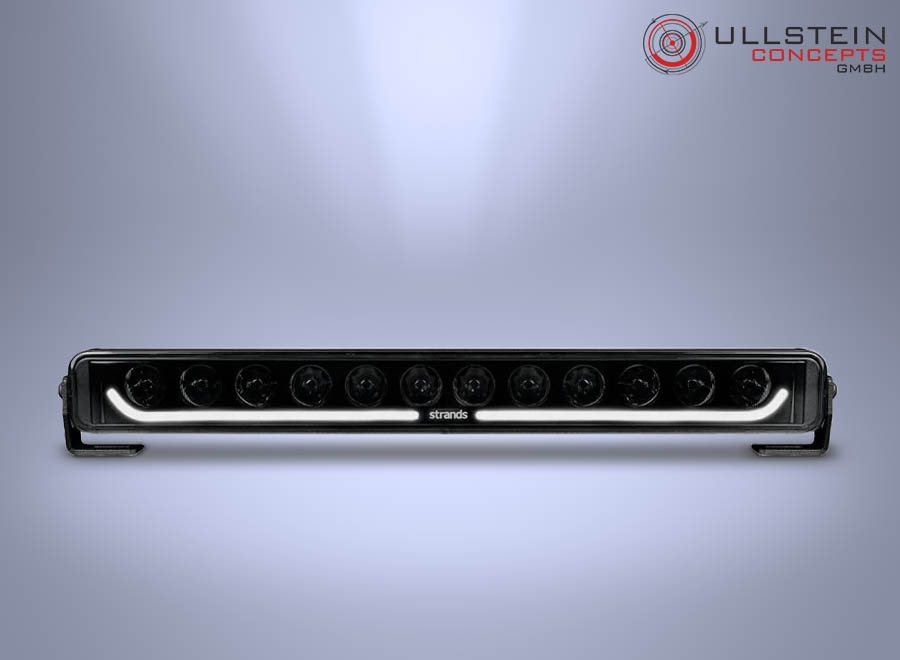

Strands - DARK KNIGHT Identity 20″

Strands - DARK KNIGHT Identity 20″

LED Driving Lights 12000lm | LED Light Bar ECE R112 E-Approved

Product number: 208-809169

Description

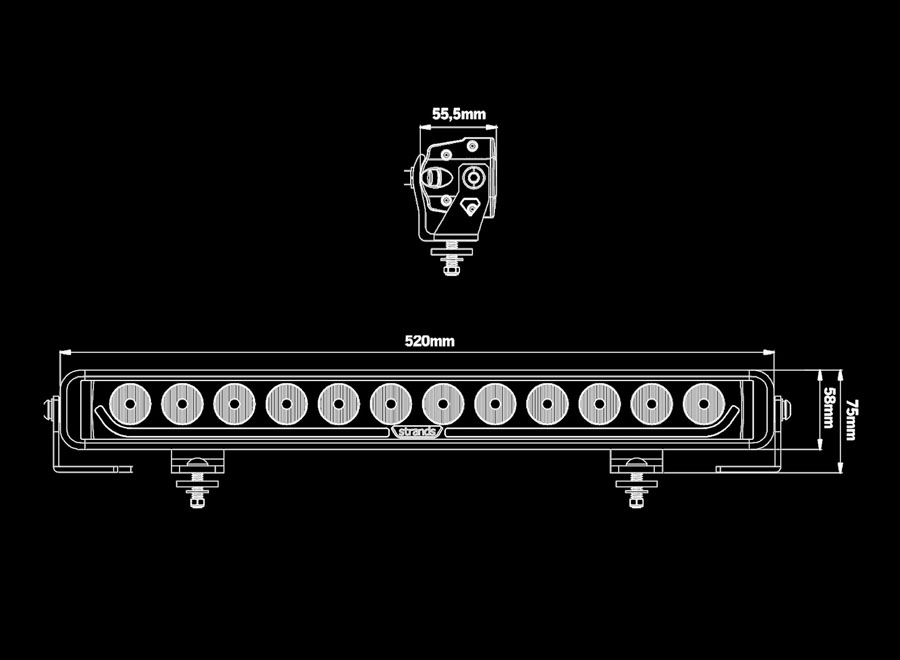

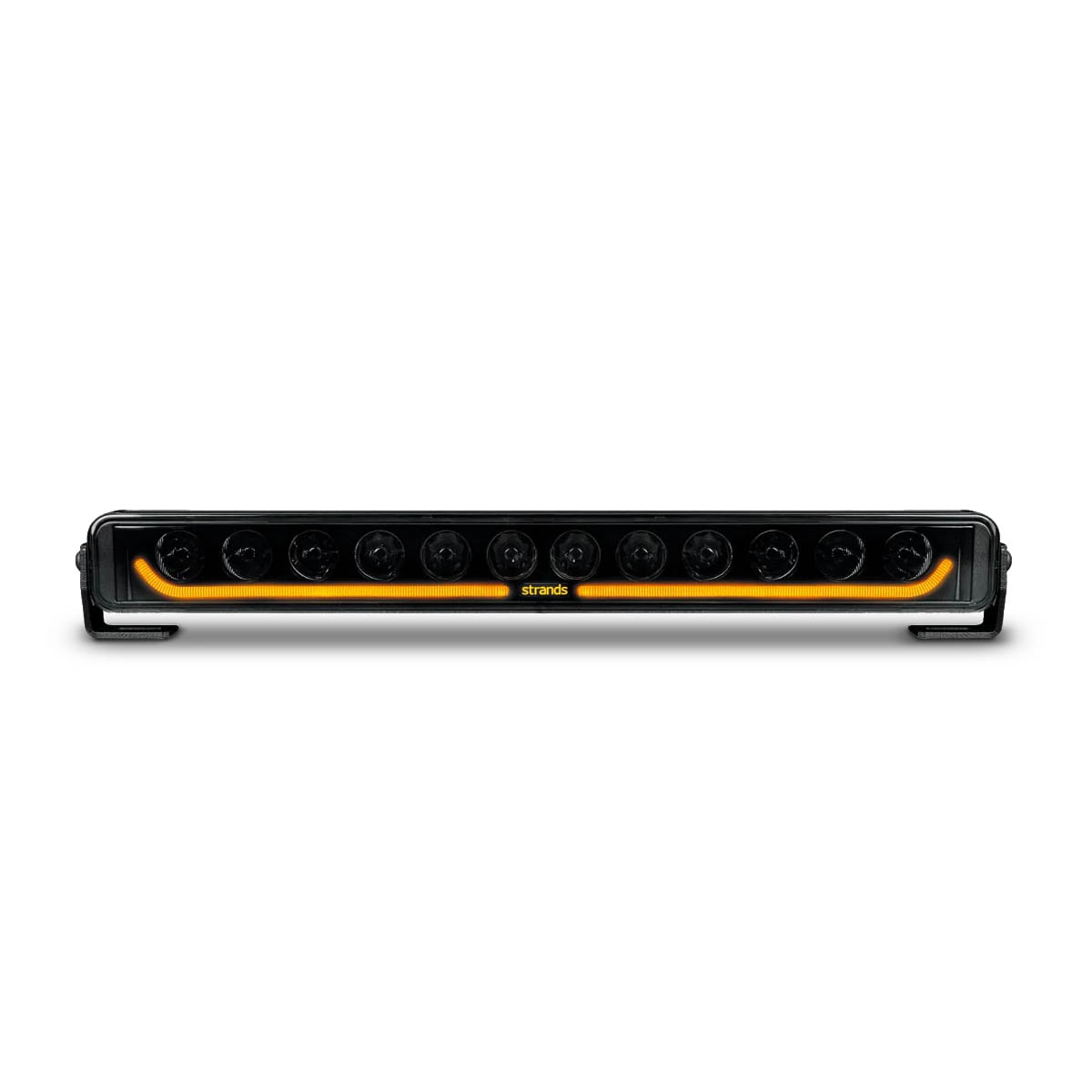

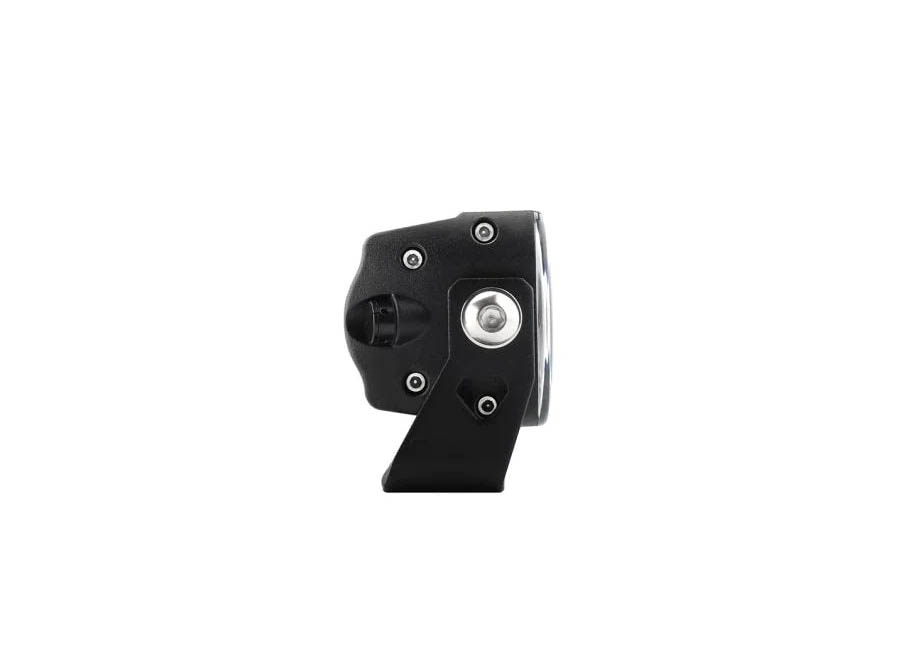

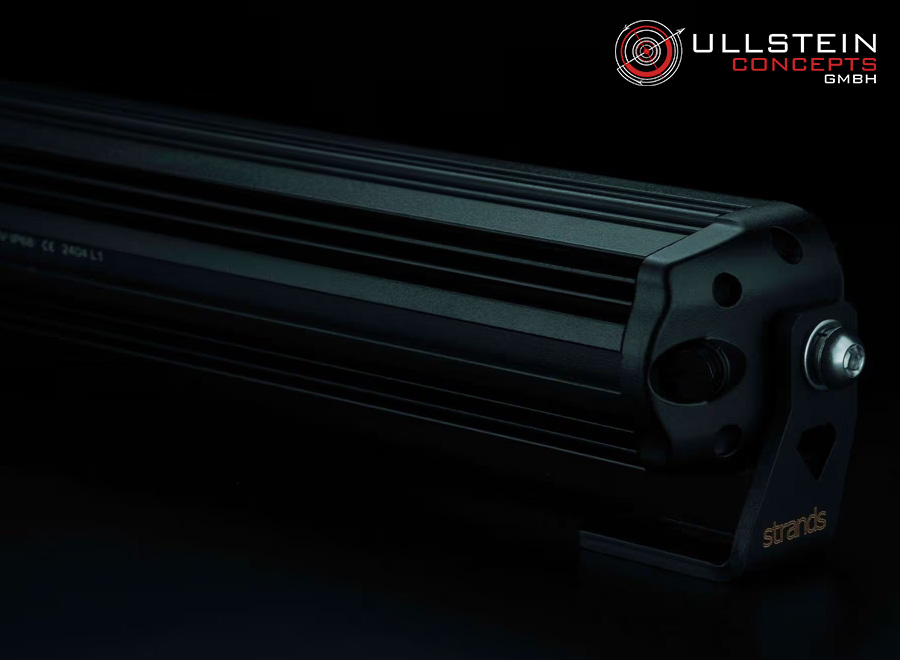

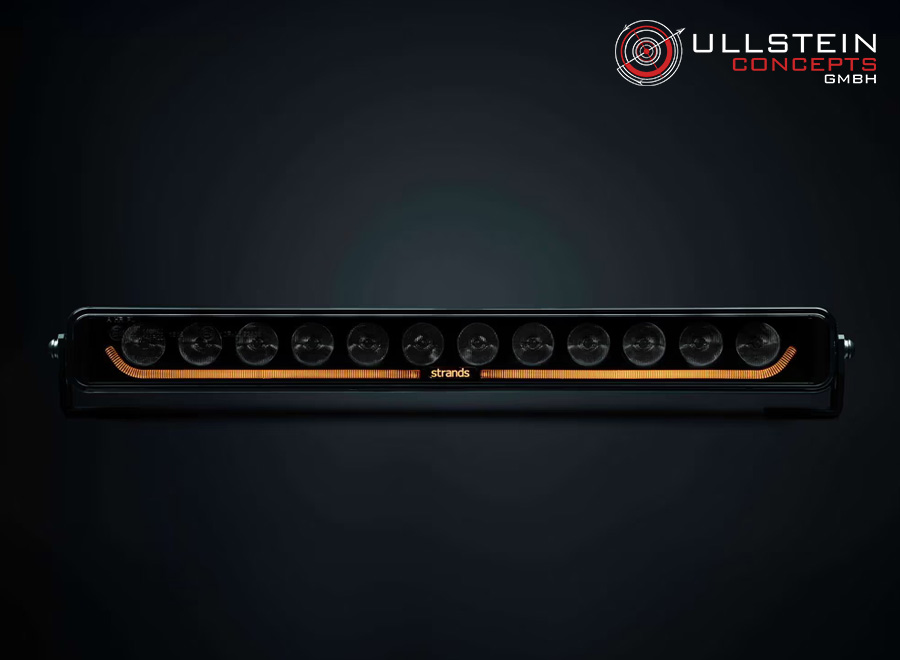

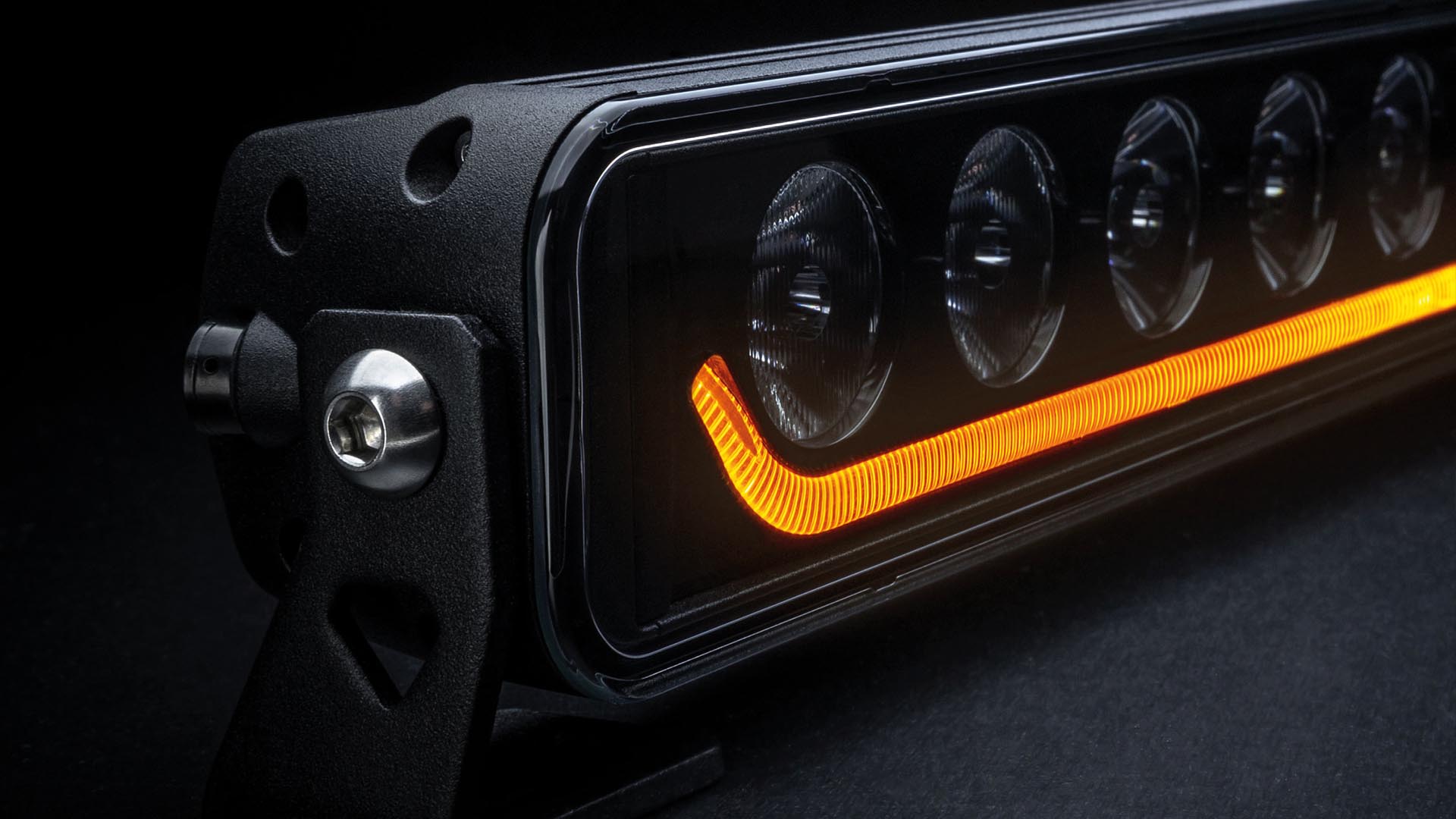

The slim design of the LED bar has a depth of only 55.5 mm, a height of 58 mm or 75 mm including brackets, which means that it fits almost all vehicles in need of a driving light in the form of an LED bar. The LED bar has both rear and side brackets for easy mounting. Best mounted with Siberia professional bracket kit (270476) together with our specially developed cable kit Siberia cable set professional 1x DT or Siberia cable set professional 3x DT. The position light comes with duo function, choose between amber and white light. Together with the unique position light, an obvious impression is created. See and enjoy the soft starting effect, where the light slowly increases in intensity before it finally reaches full capacity. Identity together with a curved line, surrounded by 12 diodes, forms a perfect pattern. A own identity.

The headlights of the Siberia series are approved as driving lights according to ECE R112 and additionally tested for electromagnetic compatibility according to ECE R10.

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



Type of lamp LED
Type of LED LP
PCS LED´s Main beam: 12
Position light: 5
Voltage (V DC) 9-36V DC
Theoretical effect (w) 12V 120
Theoretical effect (w) 24V 120
Consumption (w) 12V Main beam: 98
Position light: 2
Consumption (w) 14V Main beam: 91
Position light: 2
Consumption specific function (w) 12V Main beam: 98
Position light: 2
Consumption specific function (w) 24V Main beam: 91
Position light: 2
Theoretical lumen 12000
Actual lumen 9800

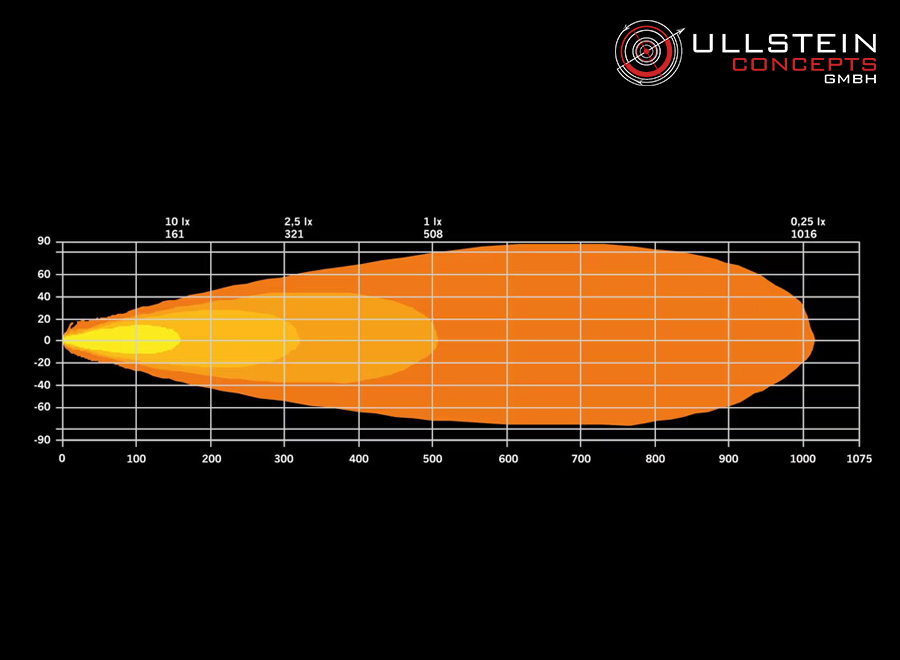

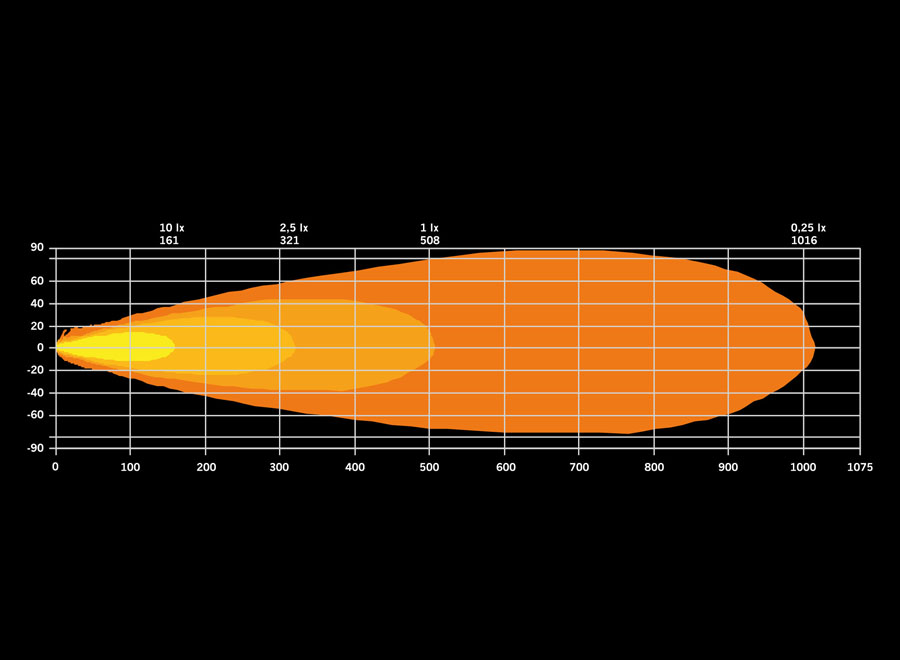

1 LUX @ m 458
Kelvin 6000
IP-class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Combo

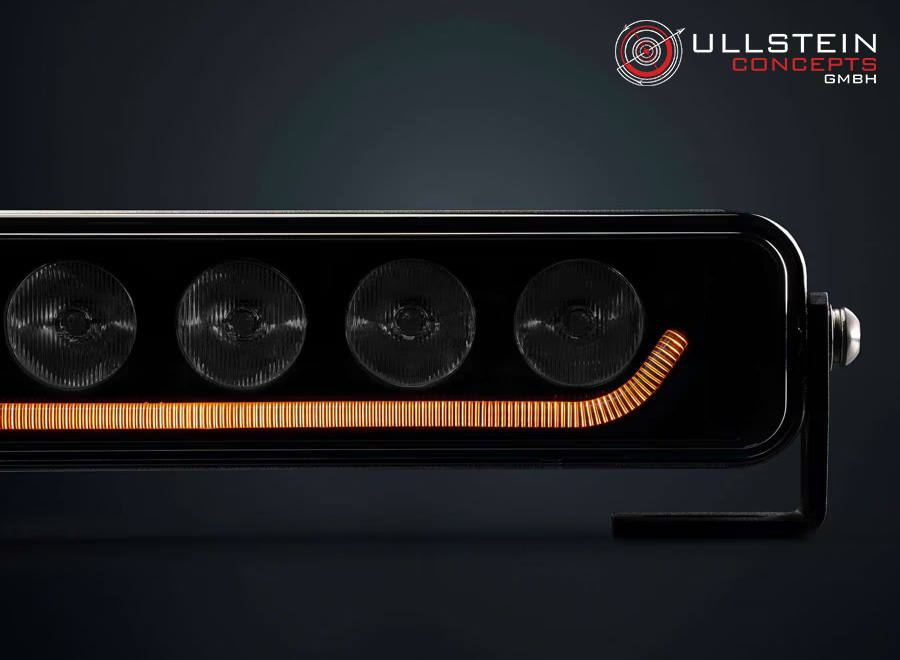

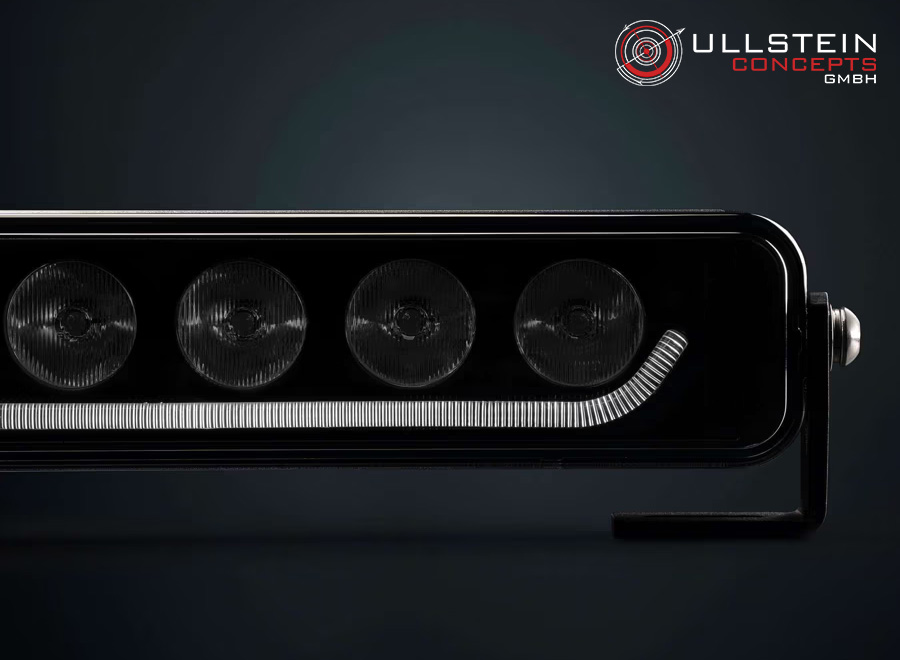

Position light YES (White and Amber)
Connection DT4
Cable length (mm) 500
Material bracket Side bracket: Stainless steel (SUS 304)
Bottom bracket: Aluminum (AL6063)
Material housing/chassi Aluminum
Material lens Polycarbonate

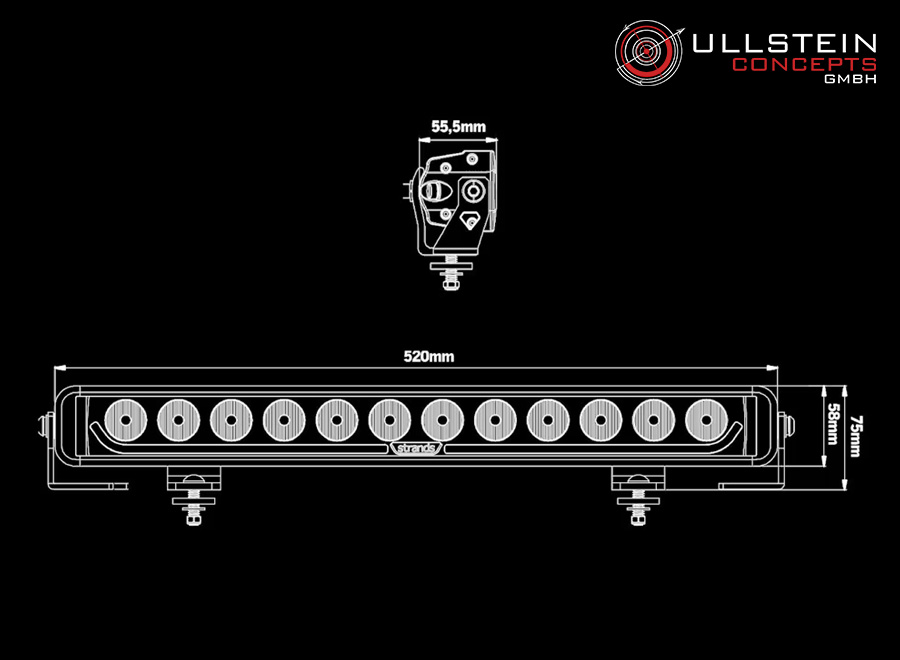

Length (mm) 520
Depth (mm) 55.5
Height (mm) 58
Height including bracket (mm) 75
Operating temperature -40 – +60°C
ADR-approved No
E-approved  Yes
According to regulation ECE R112 R7
Reference number 50
EMC ECE R10
