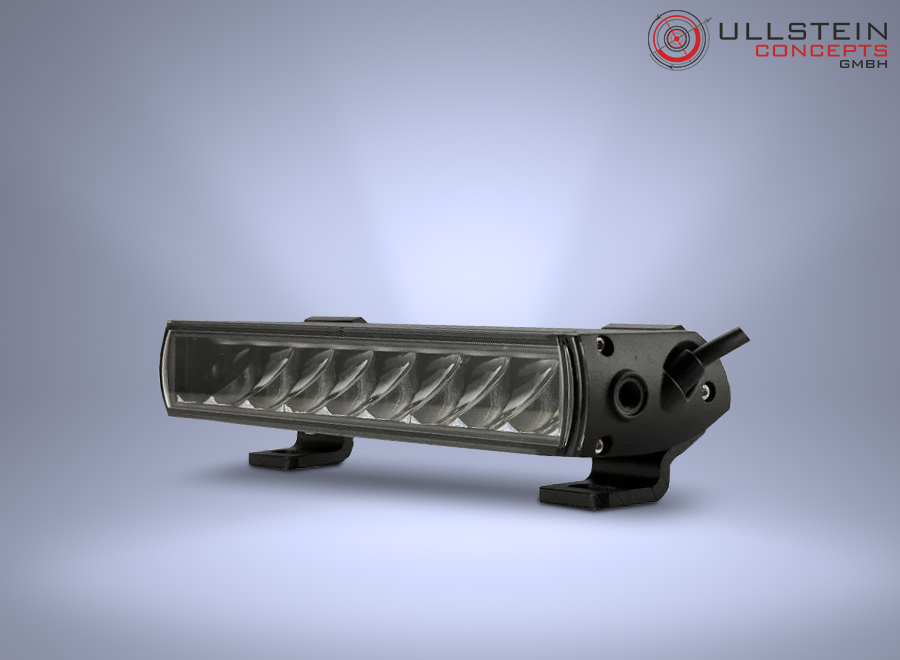

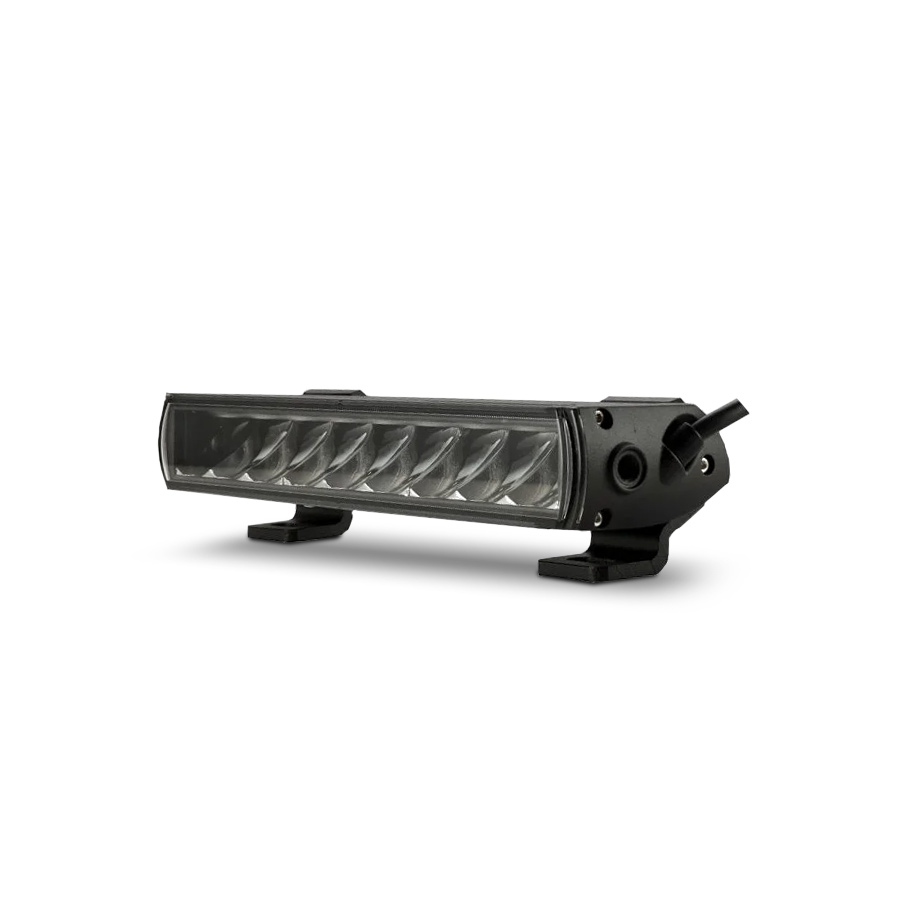

Strands - NUUK 10"

Strands - NUUK 10"

LED Driving Lights 4100lm | LED Light Bar ECE R112 E-Approved

Product number: 208-809117

Description

NUUK is perfect for mounting in the grill or sunshade. Especially the headlight convinces with a long and wide light pattern, which together with the main beam of your vehicle simply becomes unbeatable. Thanks to the new design and aerodynamics, the driving lamp fits especially well with modern vehicles. The lens extends to the edges of the housing, which not only gives your vehicle an attractive look, but also ensures that no dirt can get stuck. The Lexan lens is extremely scratch resistant and resistant to stone chips. So with NUUK you are well prepared, even in extremely difficult road conditions.

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.


TECHNICAL DATA:


Type of lamp LED
Type of LED LG Innotek
PCS LED's 9
Voltage (V DC) 9-30V DC
Theoretical effect (w) 12V 45
Theoretical effect (w) 24V 45
Theoretical lumen 4100
Actual lumens 3280
1 LUX @ m 360
Kelvin 6500
IP class 68
Colour Housing Black
Lens colour Clear
Beam pattern Combo
Connection DT2
Cable length (mm) 500
Bracket material Stainless steel
Material housing/chassis Aluminium
Lens material Polycarbonate
Length (mm) 272
Height (mm) 38.5
Height with bracket (mm) 56
Operating temperature -40°C - +60°C
ADR-approved No
E-approved Yes
According to regulation R112
Code number 20
EMC ECE R10
