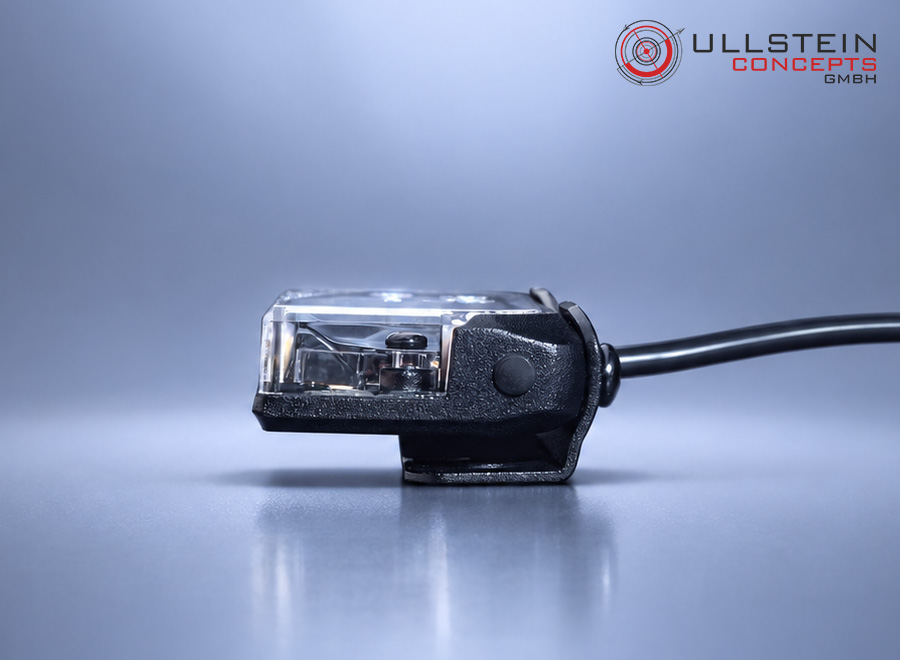

Strands - Unity Ultra Flat Duo

Strands - Unity Ultra Flat Duo

E-approved reversing and warning light

Product number: 208-800551
shipping delivery approx 3-4 weeks

Description

The E-approved Unity Ultra Flat Duo LED reversing and warning light (ECE R23/R65) increases visibility when manoeuvring and reversing.

Please note that in addition to the actual headlight approval, the installation regulations for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO).

Despite its ultra-compact size of just 90x40x21.8 mm including bracket, the reversing spotlight generates a wide and precise beam of light with a range of 24 m and a power consumption of just 9 watt.

The robust aluminium construction with shatter-proof polycarbonate lens comes with an IP68/IP69K protection and guarantees a long service life. The special coating provides additional protection against salt, dirt, and water.



TECHNICAL DETAILS:

Type of lamp LED
PCS 1
Voltage 10-32V DC
Consumption (W) 17,5
Consumption specific function (W) Reverse light:8,5W warning light:9W
Theoretical lumen 1100
Actual lumen 600
1 Lux @ 24
Kelvin 6000K
IP-Class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam angle (width) 137,8°
Beam pattern Wide Beam
Cable length (mm) 500
Material housing Aluminium
Material lens Polycarbonate
Length (mm) 90
Depth (mm) 40
Height (mm) 15
Height including bracket (mm) 21.8
Operating temperature -30°C - +65°C
E-approved Yes
According to regulation ECE R23, ECE R65
EMC ECE R10
Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
800551
