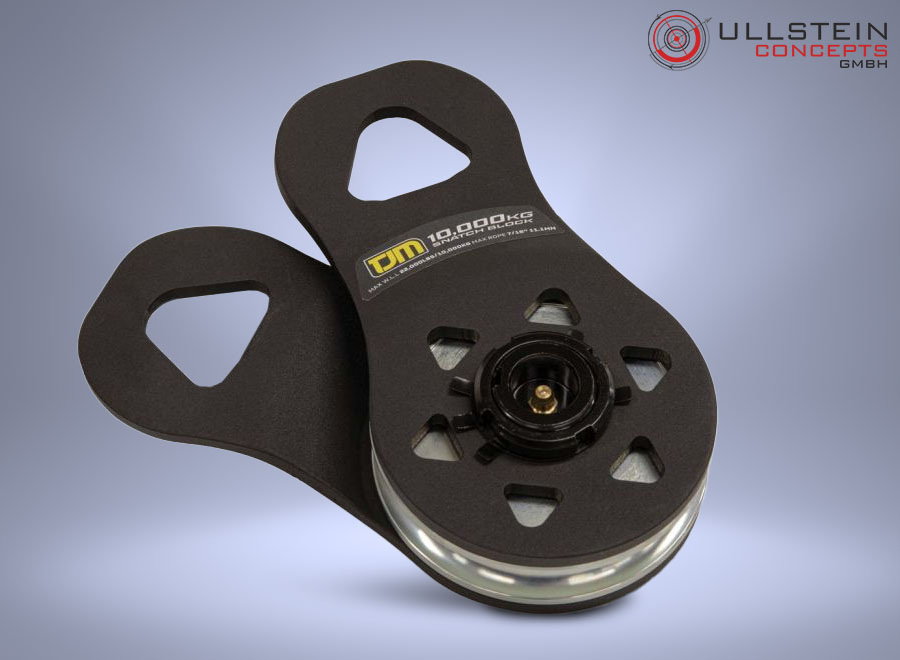

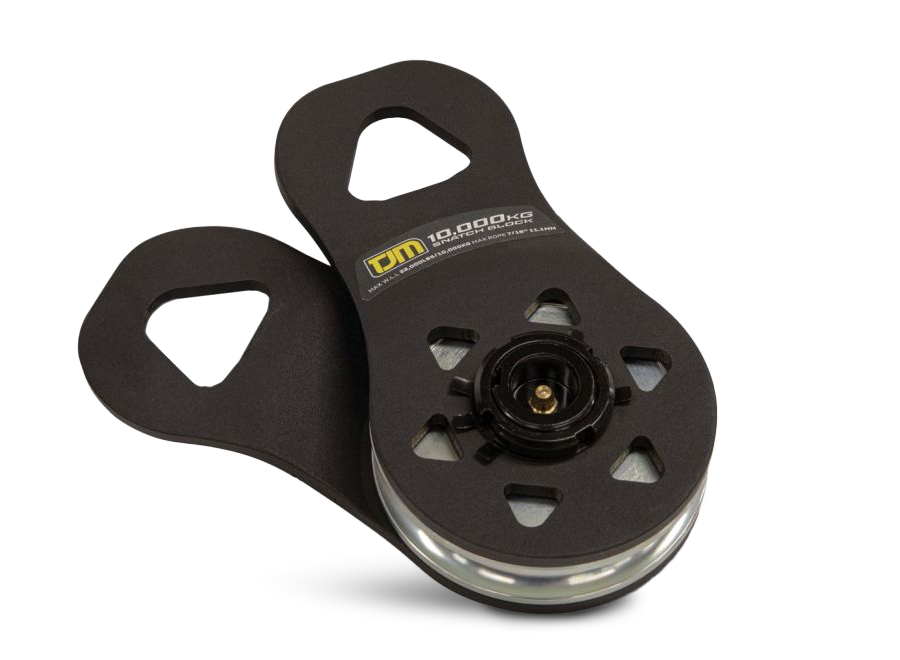

TJM Snatch Block 10t

TJM Snatch Block 10t

Umlenkrolle für Elektrowinden

Product number: T-867TJMRECSBL

Description


A snatch block can effectively halve the load placed on your recovery winch, essentially doubling its capacity. They are also useful in recovery situations where the winch anchor point is not in a direct line of the vehicle's winching direction. The TJM snatch block is complete with greaseable nipple for smooth, trouble-free operation, while it has a black electro-coated steel locking nut and a rated working load limit of 10,000kg.

Construction: CNC machined zinc-plated pulley fitted with brass bush and grease grooves to reduce rolling resistance. 6mm high tensile press formed steel side plates provides additional strength and curved sides for smooth rotation.

Product specification:
Pulley diameter : 98mm
Max rope/cable size: 11.1mm (7/16”)
Working load limit: 10,000kg
Weight: 2.45kg
Incl. Storage Pouch

Package dimensions:
Weight: 2.6 kg
Length: 250 mm
Width:  160 mm
Height: 650 mm
