XBB Einheit - Plug and Play CanBus Modul mit Bluetooth Relais

XBB unit - Plug and Play CanBus module with Bluetooth relay

Easy connection method to install auxiliary lights

Product number: 208-270425

Description

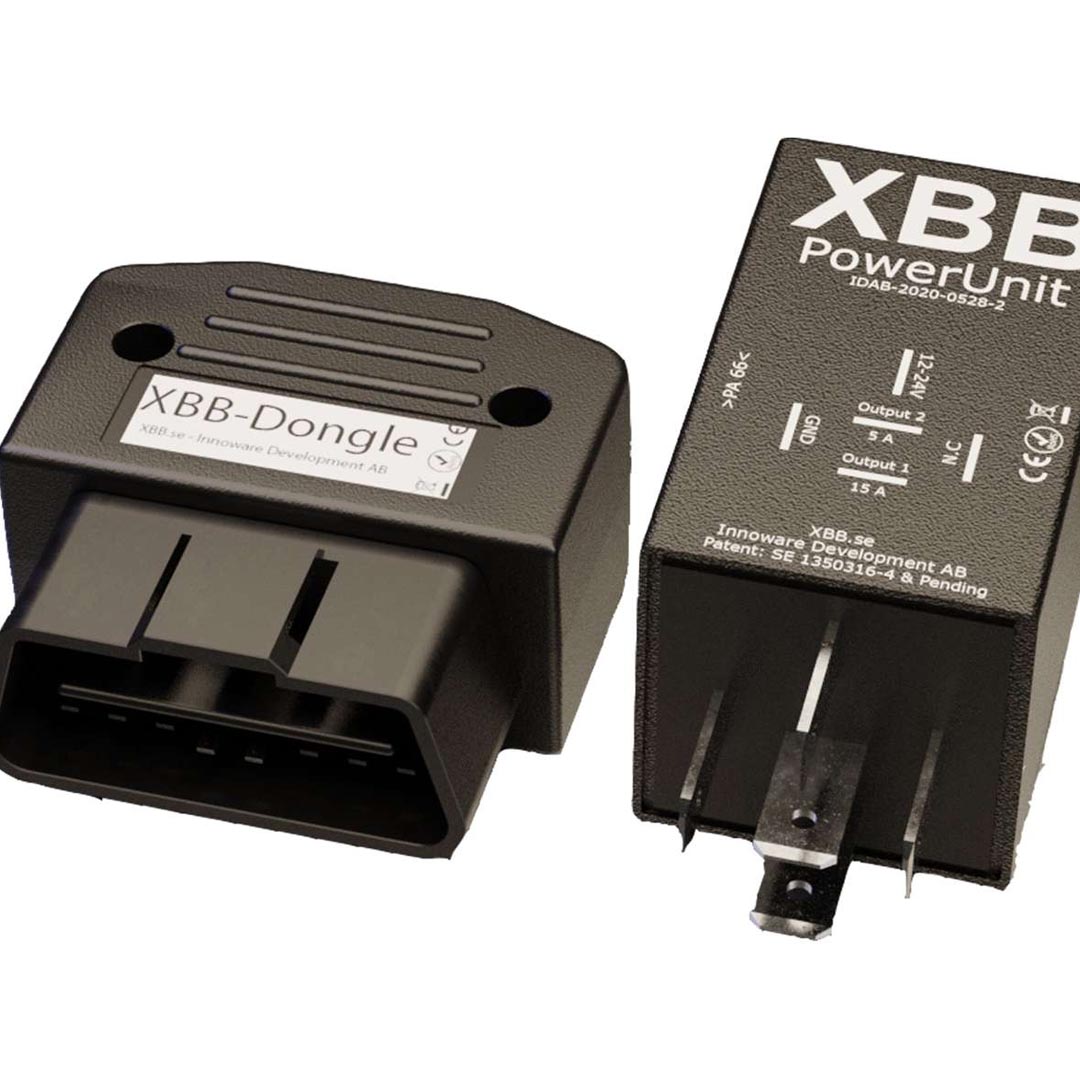

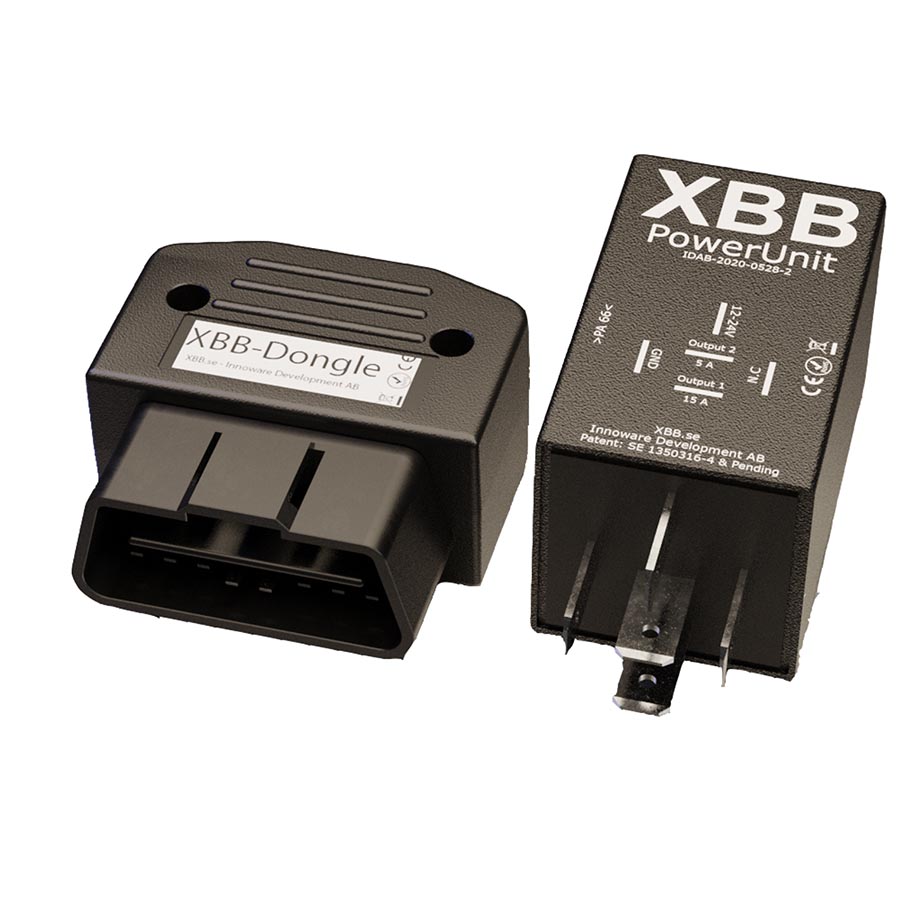

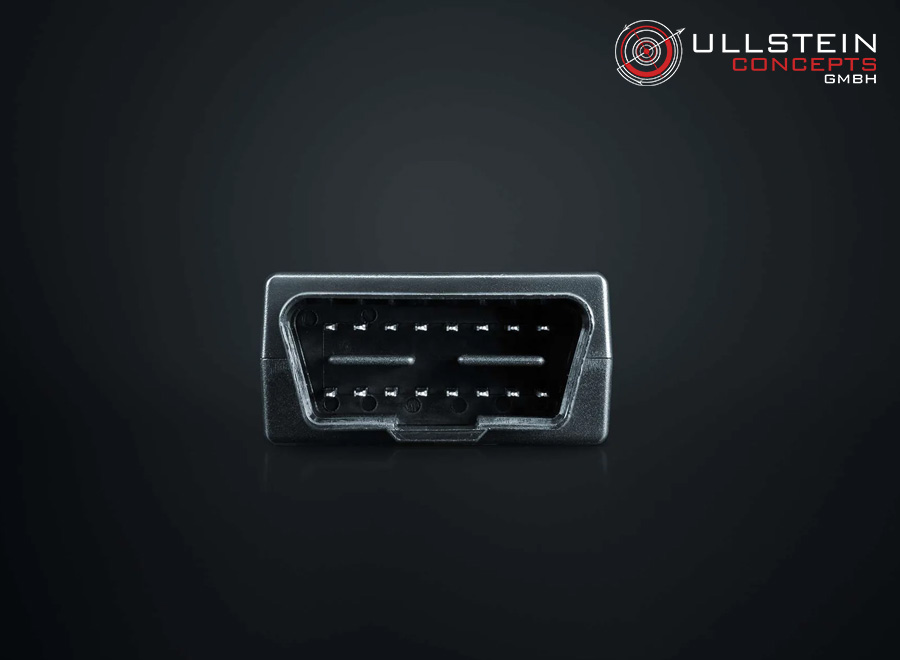

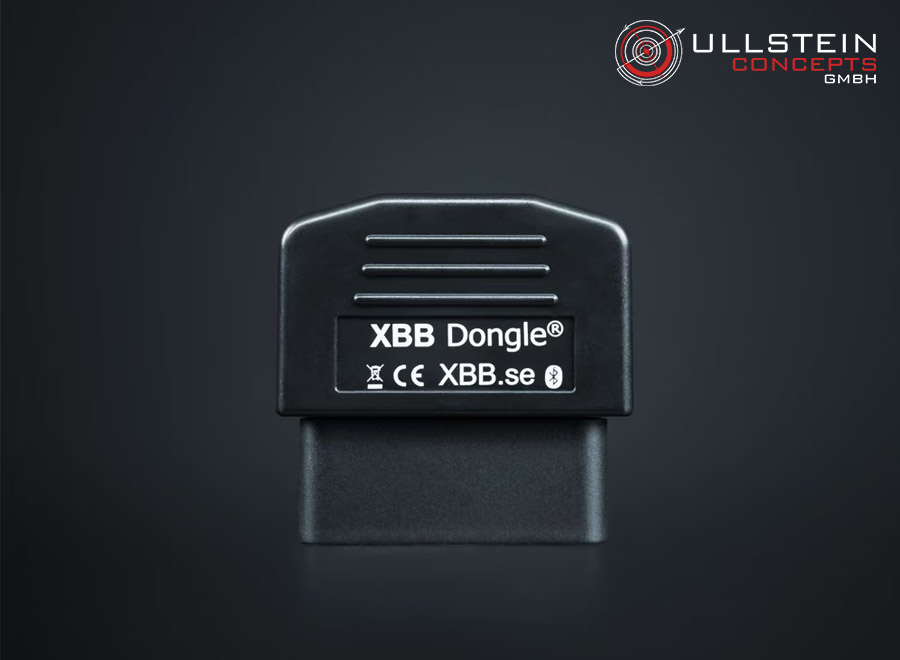

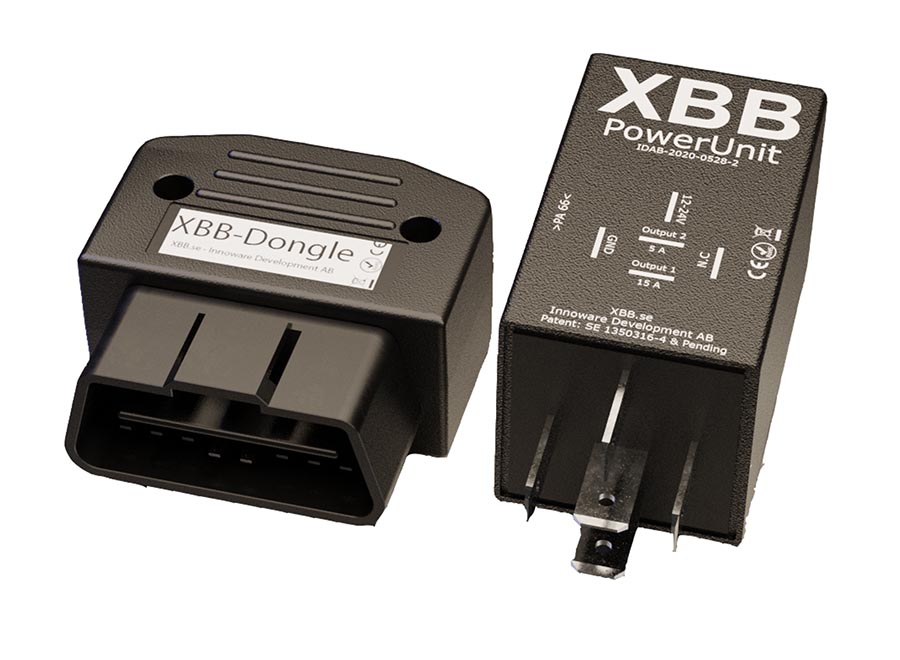

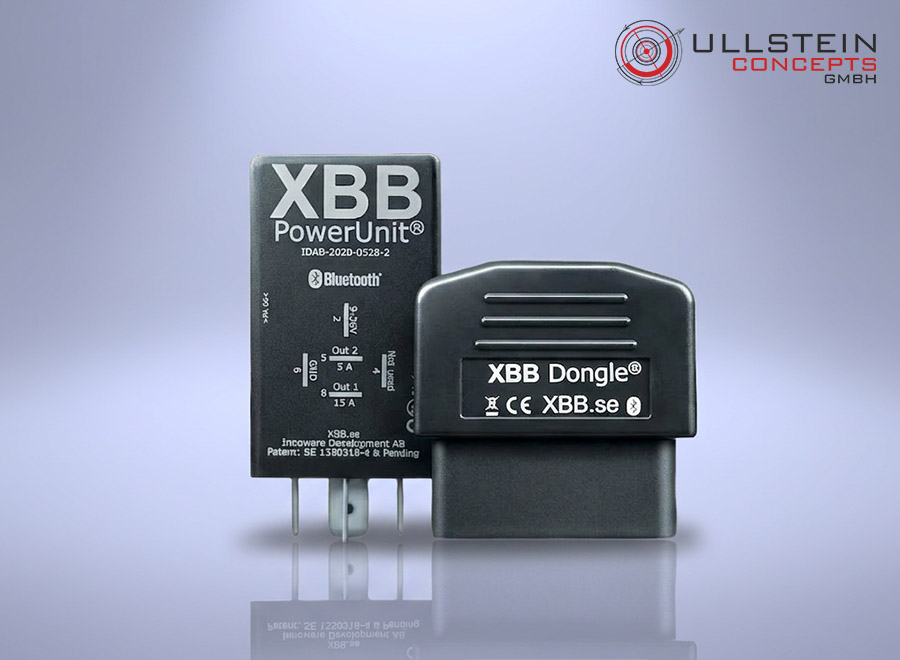

In many vehicles, the connection of additional high-beam headlights is very complex and at the same time the wiring effort is very high, especially inside the vehicle cockpit. The manufacturer XBB has a convenient solution for this. The plug and play unit includes and OBD dongie and a relay with Bluetooth receiver. It avoids the wiring effort directly within the cockpit and also the cable routing to the relay. Of course, the actual wiring to the headlight still has to be carried out. The canbus dongle is simply placed in the OBDII connector. The Bluetooth relay is then placed in parallel, e.g. in the engine compartment, and wired to the headlights.

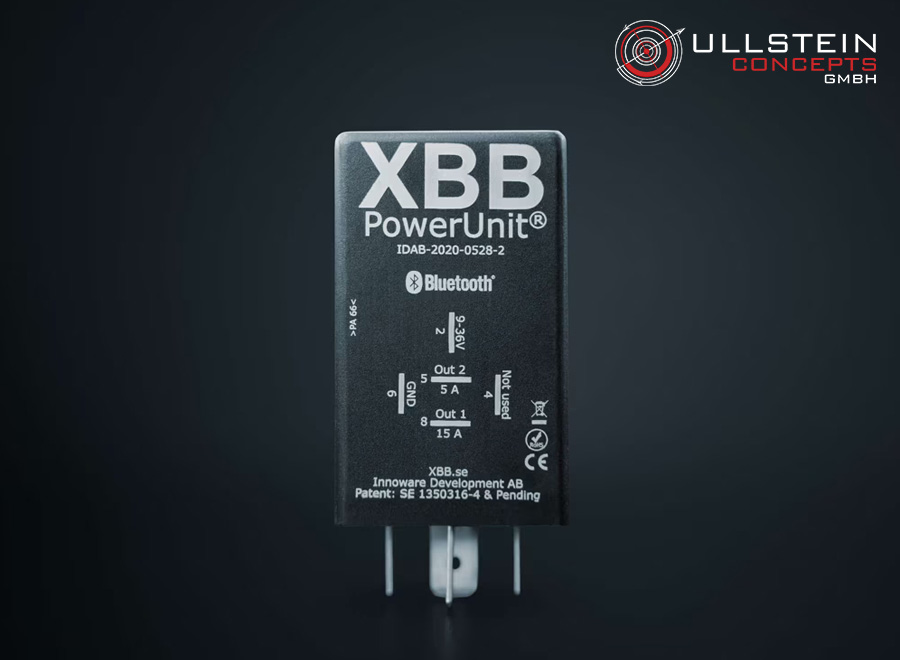

Two outputs are available on the relay with 15A and 5A. This is already sufficient for small headlights. If more powerful headlights are installed, the output signal of the Bluetooth relay is to be used as a switching signal for a larger relay. For example, the Siberia Pro Kit can be used for this. A Y-distributor for the OBDII connector is available as an option, which means that a connection is possible even in tight spaces. Bluetooth switches are also available, which can also be integrated. The module recognizes and provides several possible output signals for most vehicles, such as high beam, reversing light, low beam and ignition. The relay is controlled using an app for the smartphone, which ultimately determines which functions are to be controlled on the two outputs. Please note that not every vehicle is compatible with the system. Please check the compatible vehicle list.


Documents

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
270425
