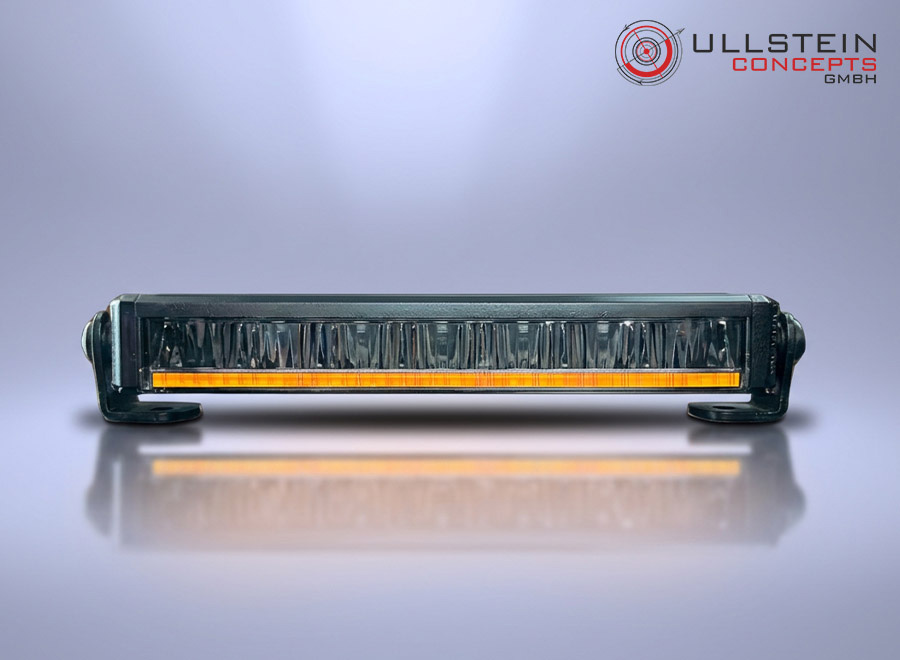

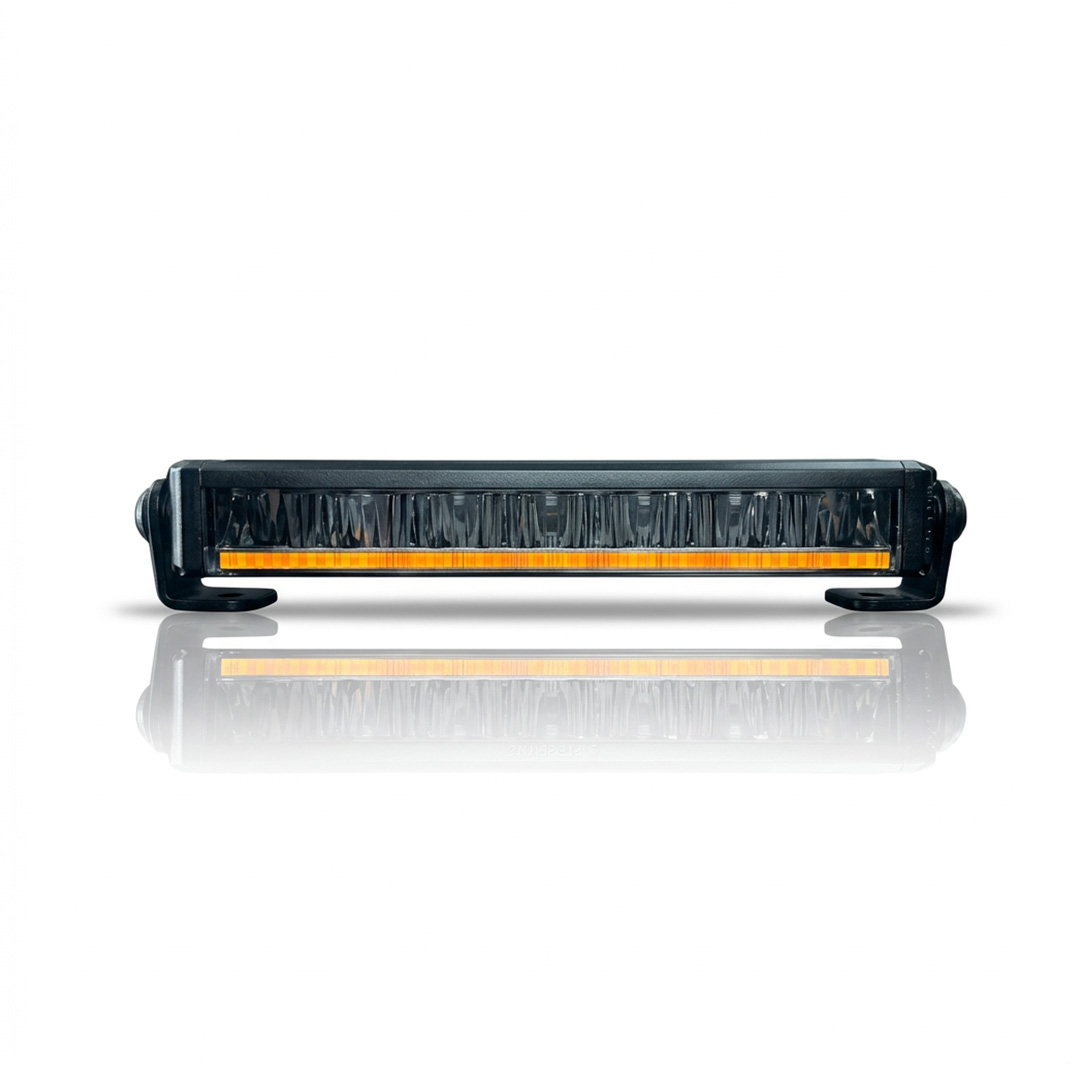

Strands - Firefly LED Bar 10"

Strands - Firefly LED Bar 10"

LED Driving Lights 6200lm | LED Light Bar ECE R148 / R149 E-Approved

Product number: 208-809401
shipping delivery approx 3 weeks

Description

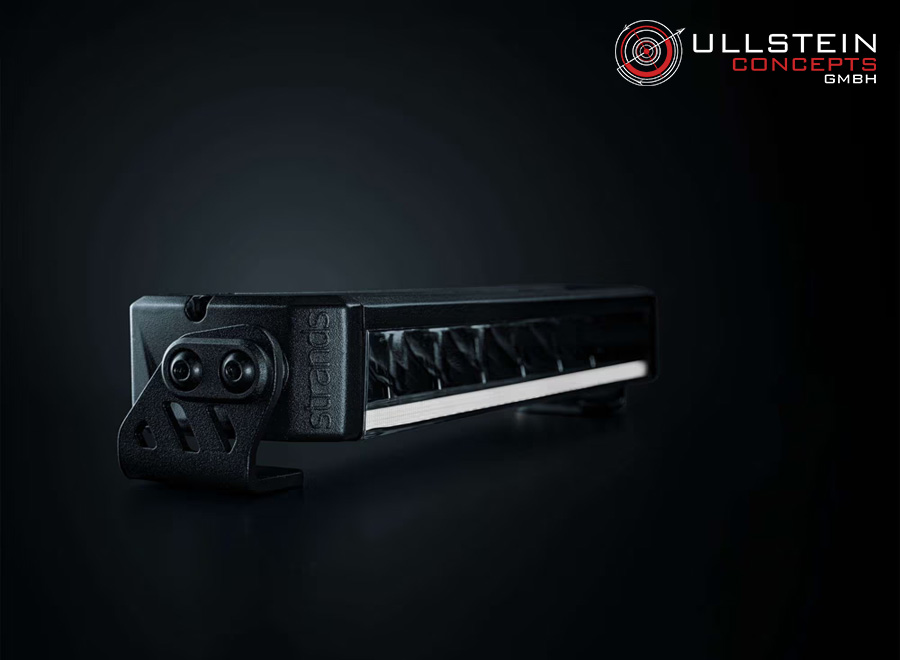

The Strands Firefly 10 Inch Lightbar is the result of cutting-edge engineering and attention to detail. An absolute game-changer in LED innovation and design.

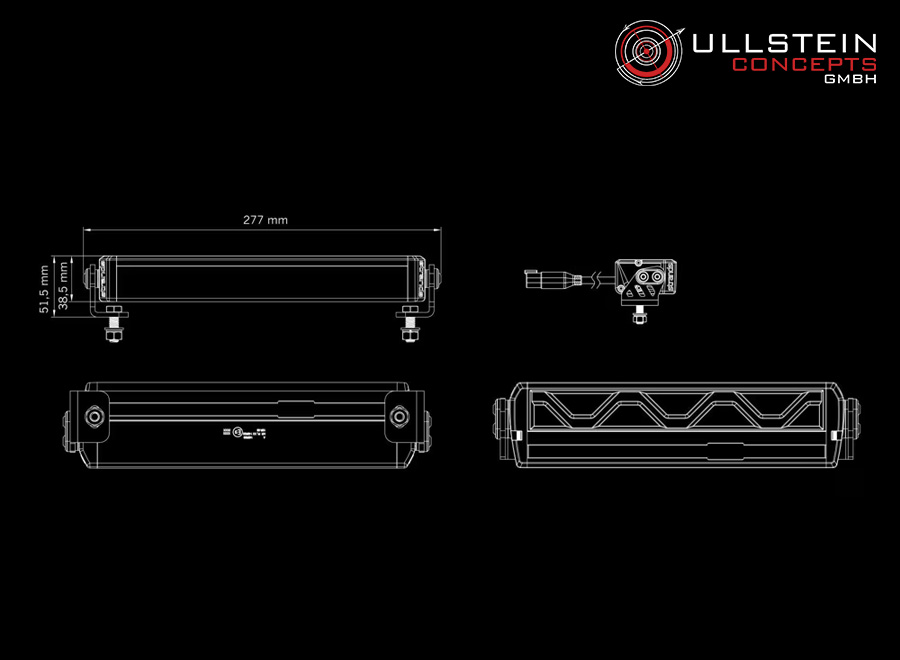

With a depth of only 70mm and a height of 38.5mm, the LED bar is remarkably slim. Despite its compact dimensions, the single-row LED bar delivers a precise and wide beam pattern with 6200 measured lumens at a lighting distance of 363m at 1 lux.

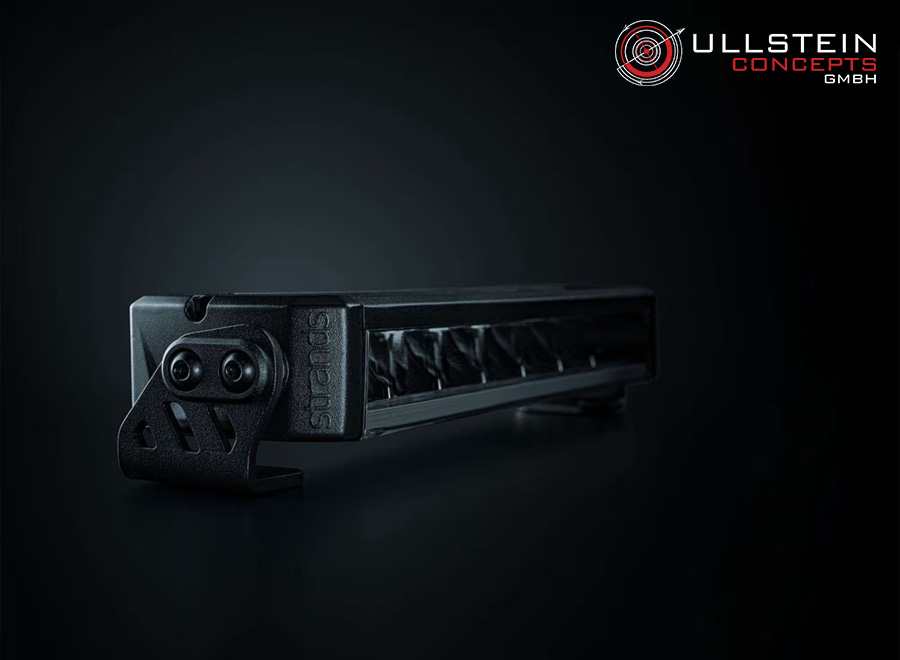

The Firefly 10 inch LED Lightbar can be mounted either with the side brackets, or with adjustable brackets that attach to the side, top or bottom of the Lightbar.

Included in delivery are mounting brackets, screws and a 50 cm long connection cable with DT-4 connector.

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



 TECHNICAL DATA:

Type of lamp: LED
Voltage range (V DC): 10-48V DC
Consumption (w) 12V: 75
Consumption (w) 24V: 72
Functions: white & amber position light, driving lamp
LED Rated luminous flux (calculated): 6200
LED luminaire luminous flux (measured): 5010

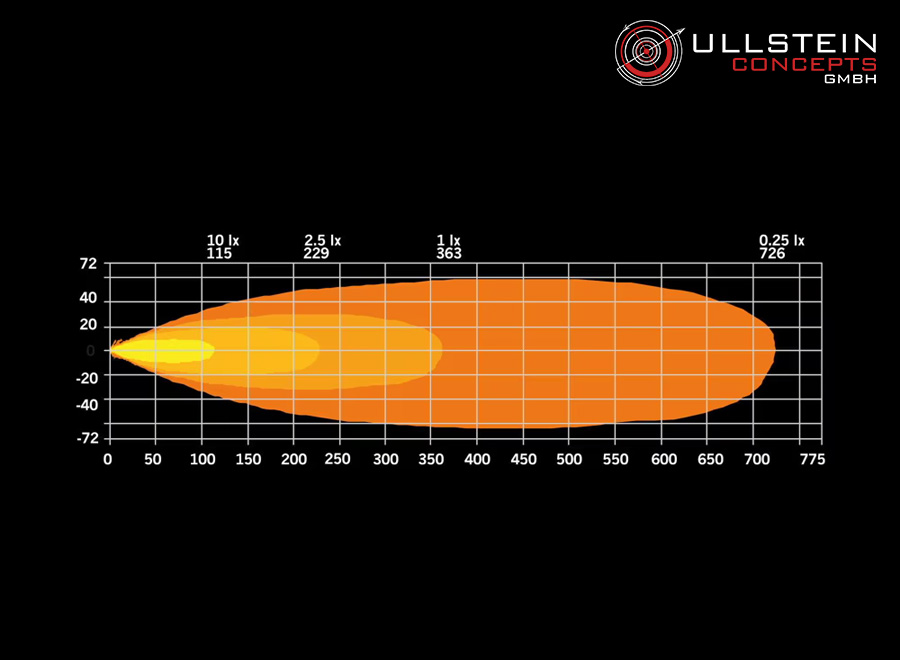

Light distance at 1lux: 363
Color temperature: 6000 K
IP class: 68
Beam angle: Combo

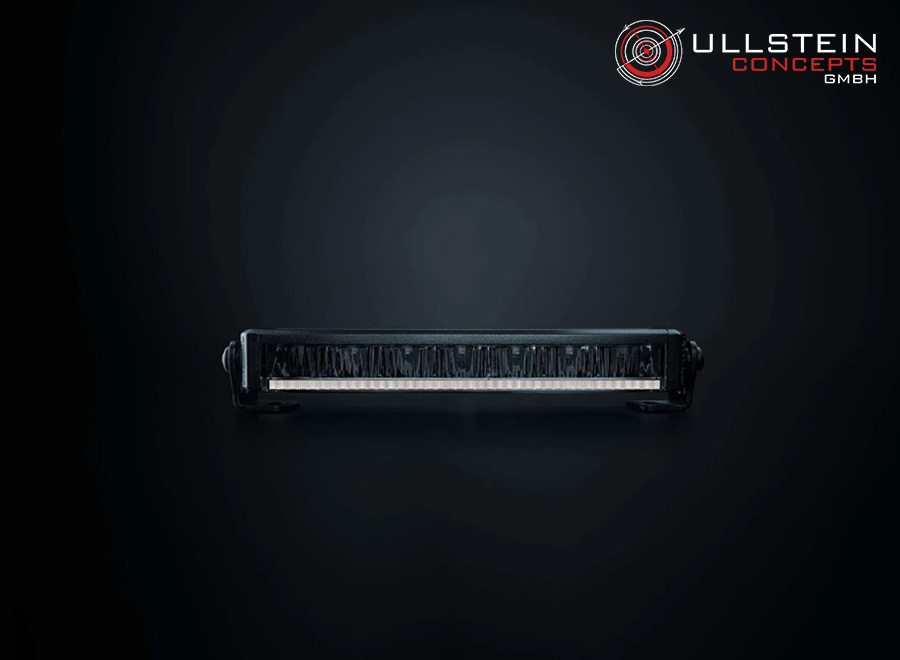

Position light: Yes, amber & white
Connection: DT4
Cable length (mm): 500
Material bracket: Stainless steel,
Material housing: Aluminum
Material lens reflector: Polycarbonate
Length (mm): 277
Depth (mm): 70
Height: 38.5
Height with bracket (mm): 56
Operating temperature: -40°C - +65°C
ADR-approved: No
E-approved: Yes
Type E-mark: R148, R149
Reference value (Ref.): 25
EMC: ECE R10
