Strands Siberia dark Night Intense

Strands - DARK KNIGHT Intense 9"

LED Driving Lights 16100lm | LED Light Bar ECE R7 R112 E-Approved

Product number: 208-270928

Description

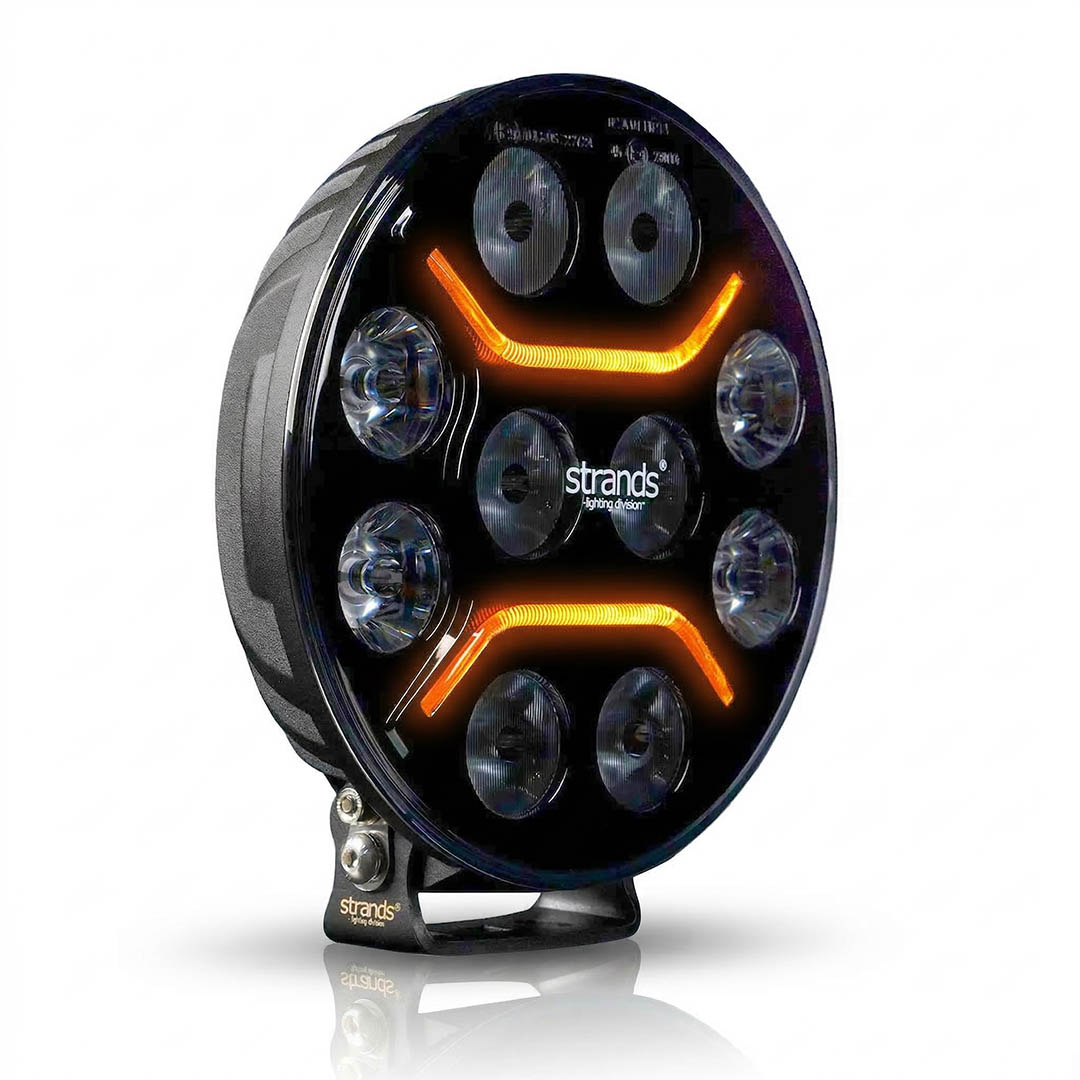

Dark Knight Intense 9 inch - The round LED driving lamp ensures safe driving on motorways, country roads and forest tracks.

With its extravagant appearance, it immediately catches the eye and yet blends in perfectly with the overall appearance of your vehicle. The round, dark design and the unusual position light of the headlamp emphasise in every respect what Strands Lighting Division wanted to achieve with the Dark Knight product range: a cool, new look.


The very slim design - just 7cm deep - allows the headlamp to become one with your vehicle. With the Dark Knight Intense, Strands has developed a headlamp with an optimised light pattern in both width and length.



ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.

Technical Data:

Type of lamp LED
Type of LED LP
PCS LED´s
Driving beam: 10
Position light: 4
Voltage (V DC)  9-36V DC
Theoretical effect (w) 12V 150
Theoretical effect (w) 24V 150
Consumption (w)  12V 130
Consumption (w)  24V 130
Theoretical lumen 16100
Actual lumen 13500

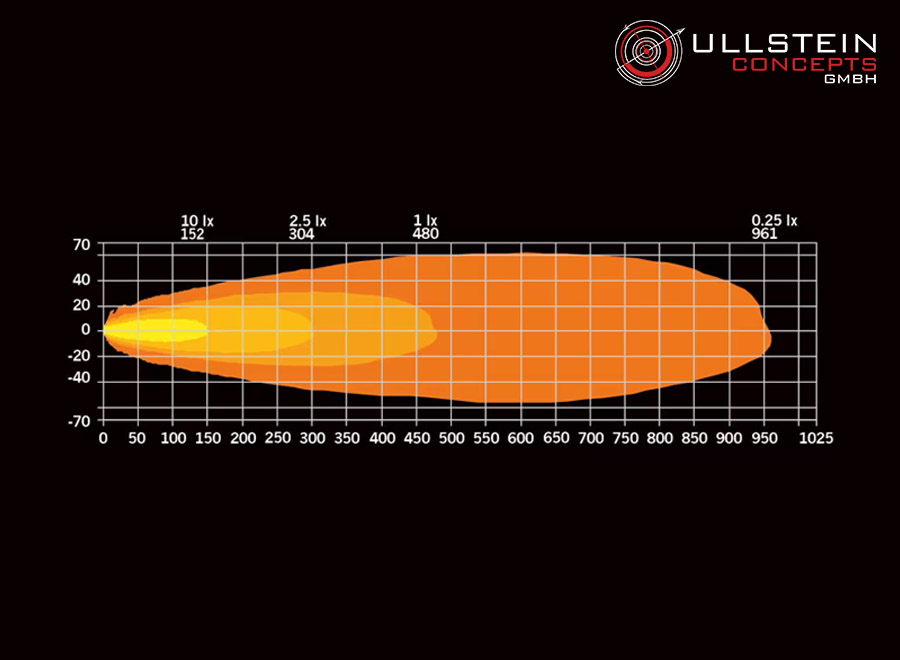

1 LUX @ m 480
Kelvin 5000
IP-class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Orange
Beam pattern Combo
Position light White and Orange
Connection DT-4
Cable length (mm) 500

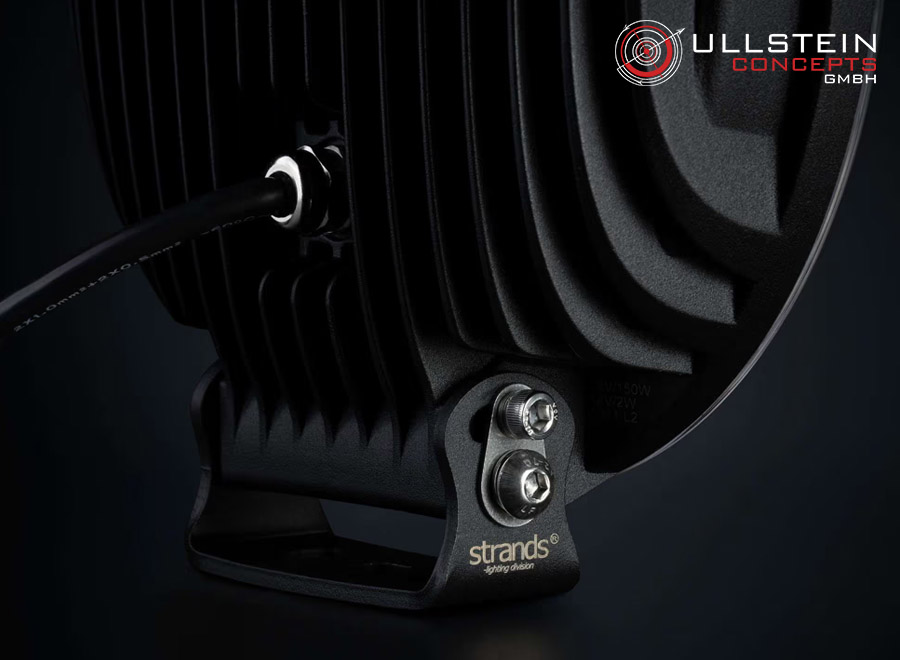

Material bracket Stainless steel (sus304)
Material housing/chassi Aluminium
Material lens Polycarbonate

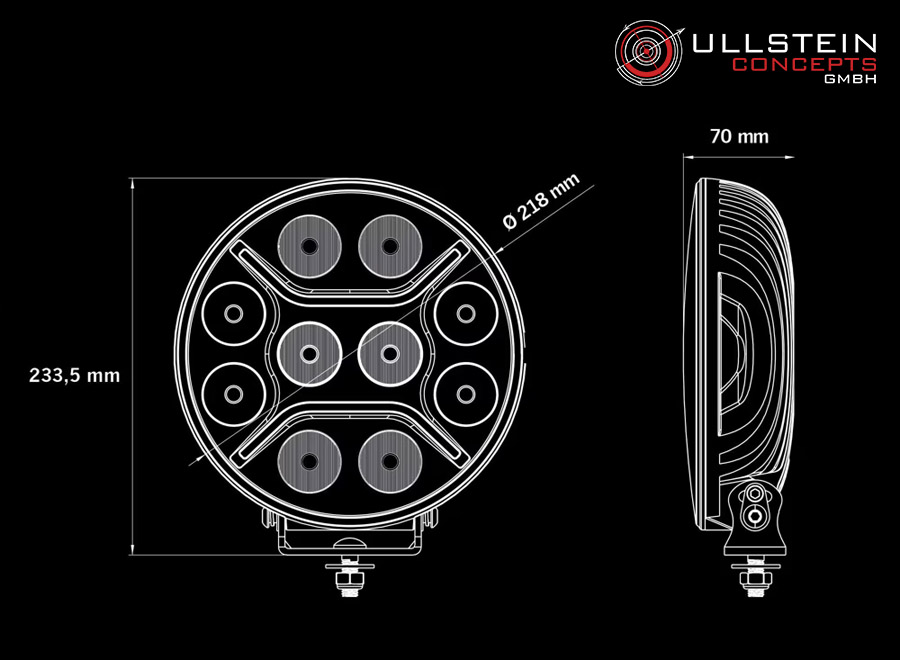

Depth (mm) 70
Height including bracket (mm) 233.5
Diameter (mm) 218
Operating temperature -40°C - +60°C
ADR-approved No
E-approved Yes
EMC ECE R10

Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
270928
