Strands - Big Energy Driving Light 9″

Strands - Big Energy Driving Light 9″

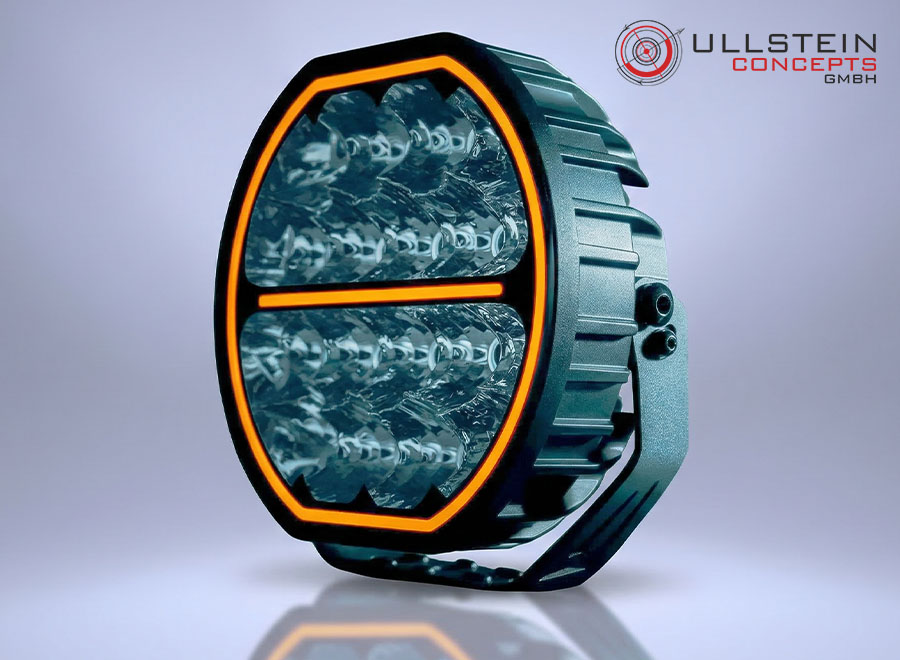

LED spotlight 13500lm | LED auxiliary headlight with E-mark ECE R148 R149

Product number: 208-270976
shipping delivery approx 12 weeks

Description

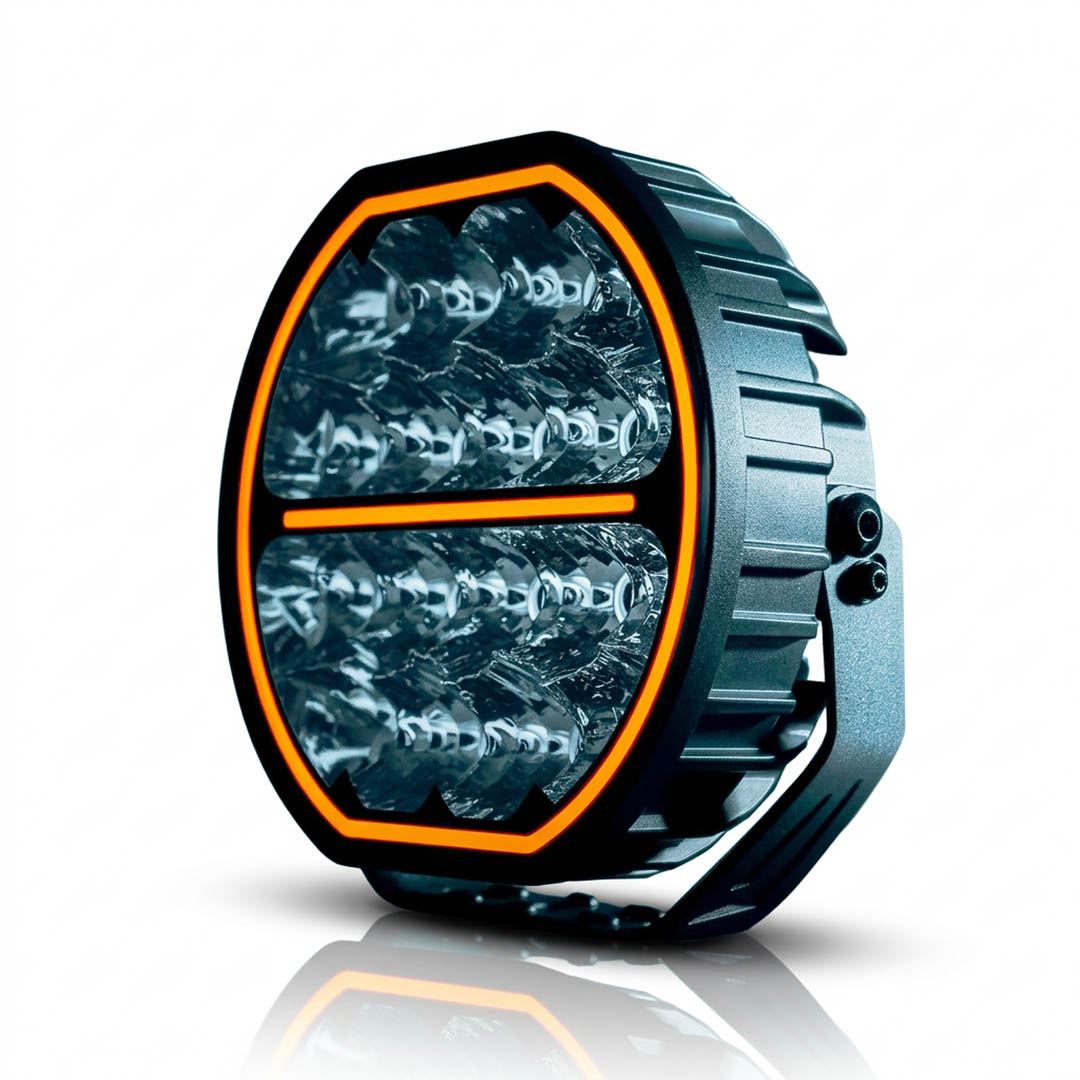

A Powerful Optimized Beam Packed with Energy

The Big Energy LED spotlight by Strands delivers over 11900 active (measured) lumens, generating a wide and powerful light beam with a range of more than 400 metres and a width of 80 metres at 1 lux. The colour temperature of 6500K ensures a strong and clear light output.

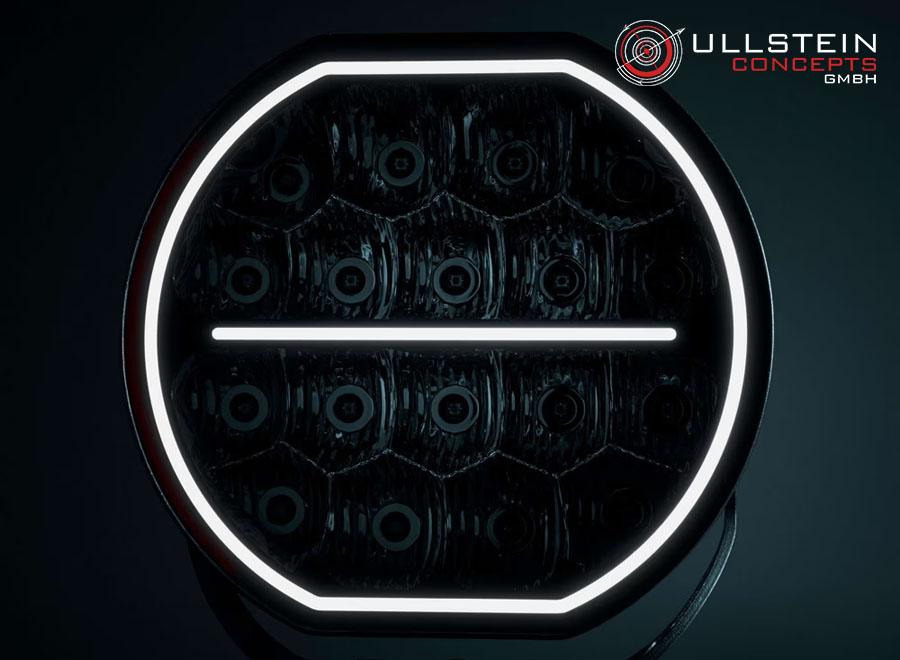

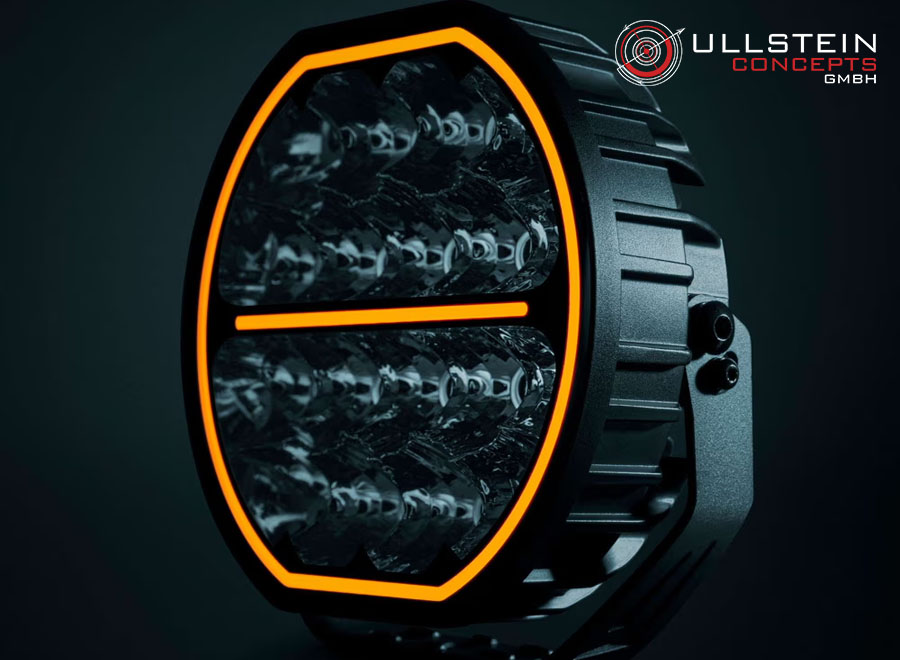

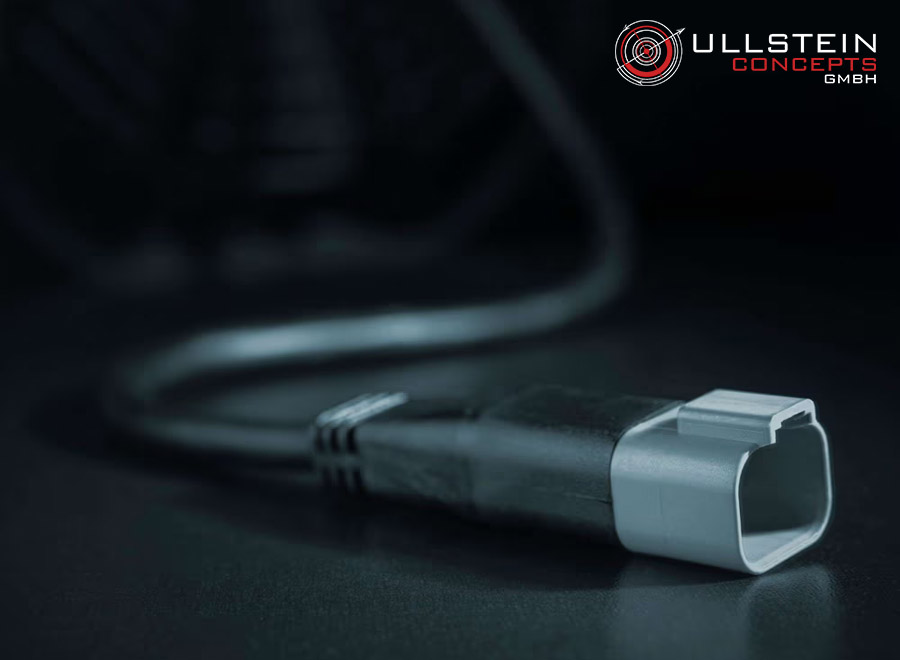

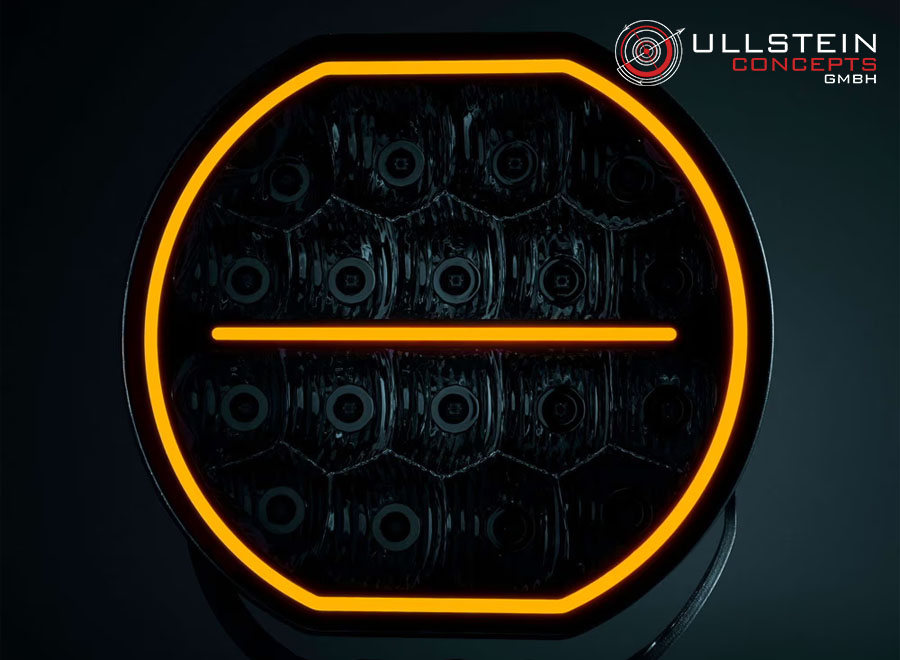

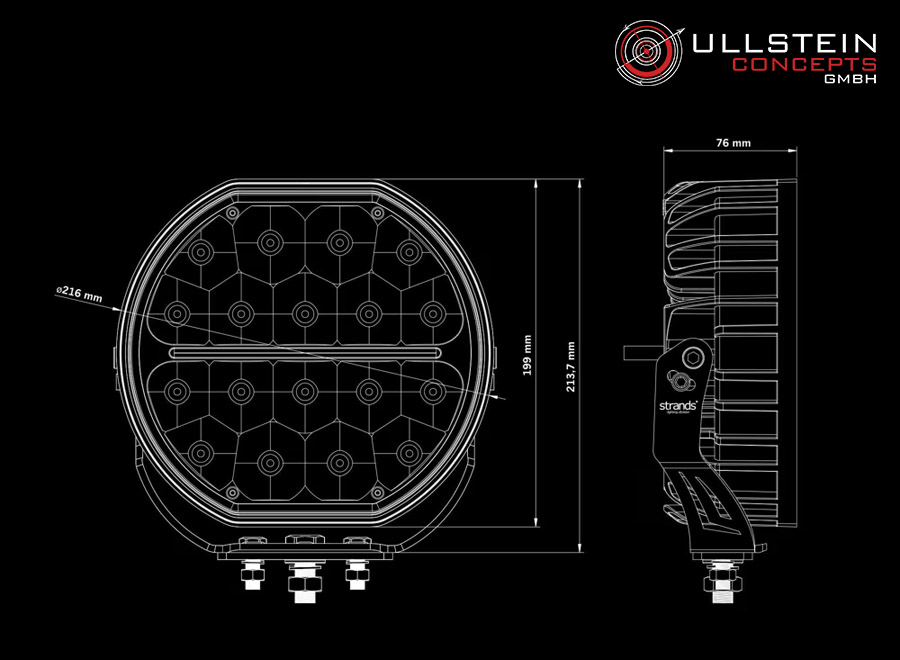

The slim and lightweight design (216x76x199 mm without bracket) enables installation even where space is limited. The 1000 mm long cable with DT-4 plug makes installation easy. The position light can be set in either white or amber colour.

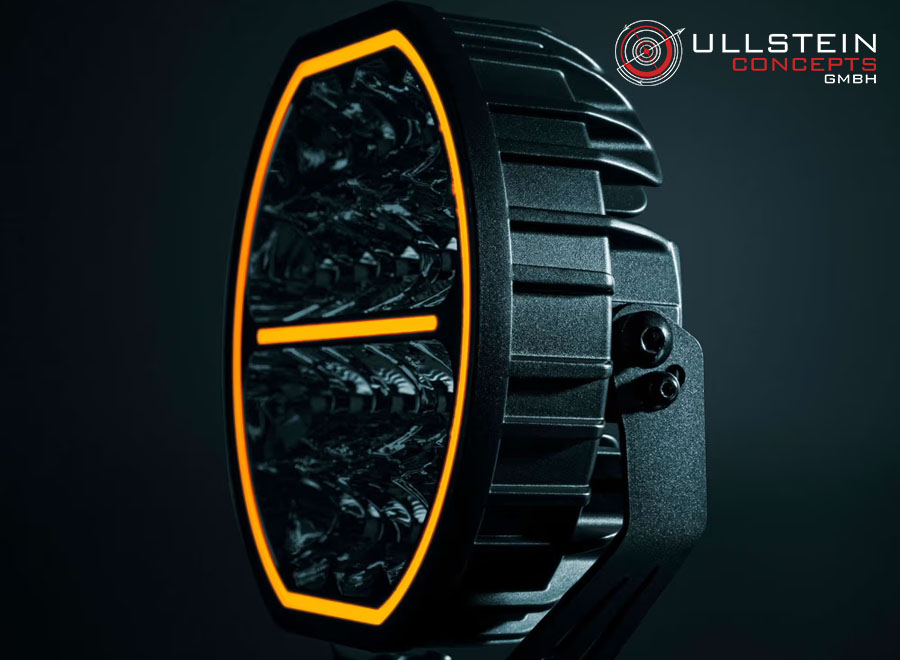

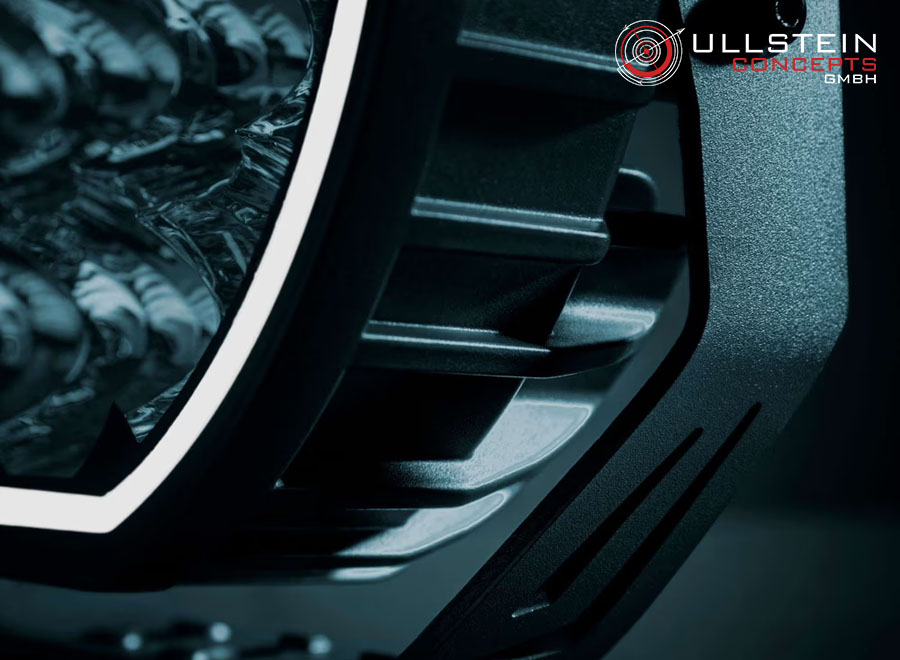

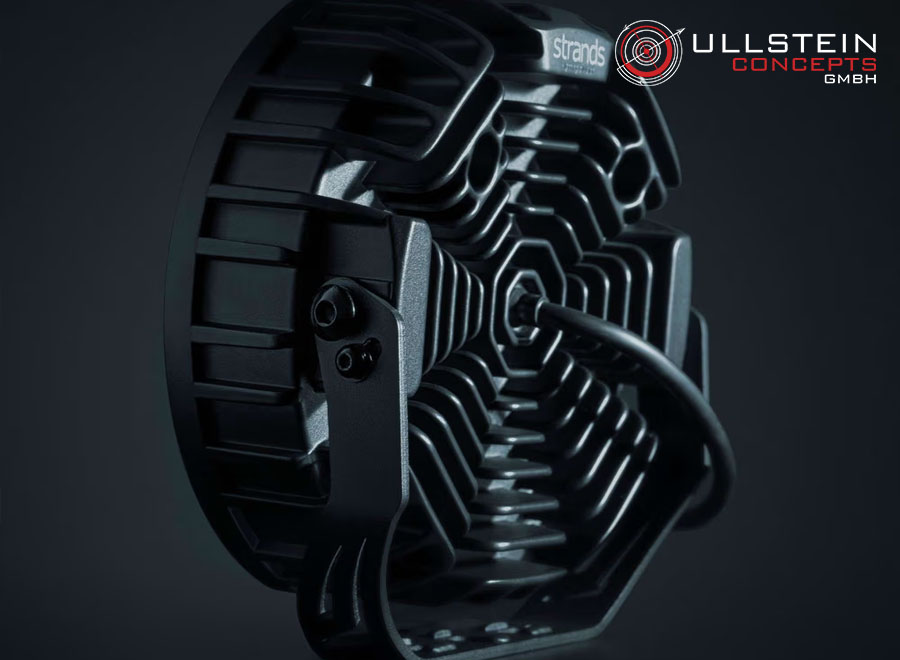

The Big Energy high beam headlight with ECE R148 149 E-mark consists of a robust aluminium housing and unbreakable polycarbonate lens. With an IP rating of IP67/IP69K, the auxiliary headlamp can withstand rough weather and hard use.



ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



TECHNICAL DETAILS:


Lamp Type: LED
Voltage range (V DC): 10-32V DC
Consumption (w) 12V: 112
Consumption (w) 24V: 105

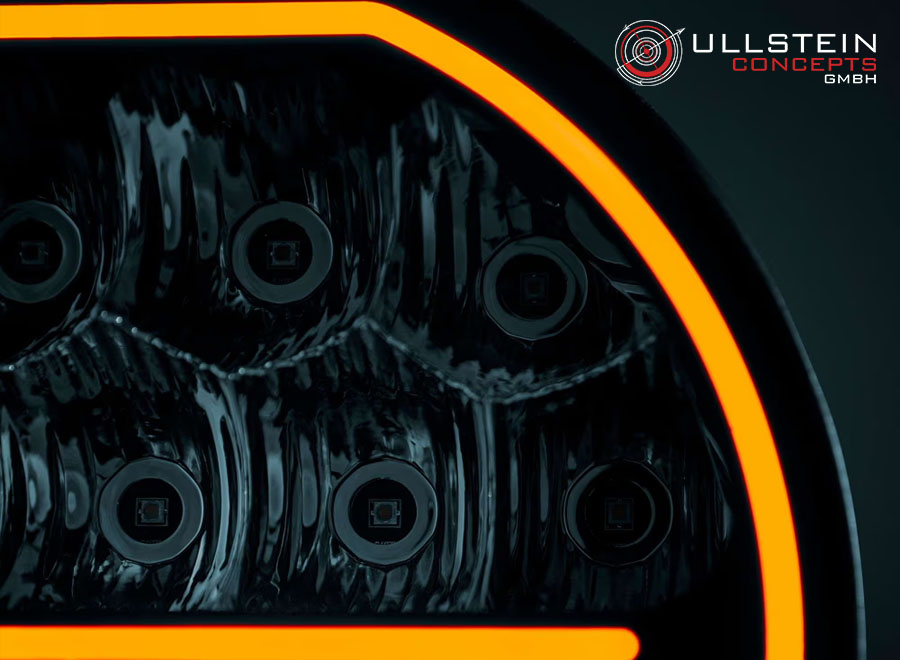

Functions: Driving light, position light orange + weiß
Nominal LED luminous flux (calculated): 13500
LED luminaire luminous flux (measured): 11908

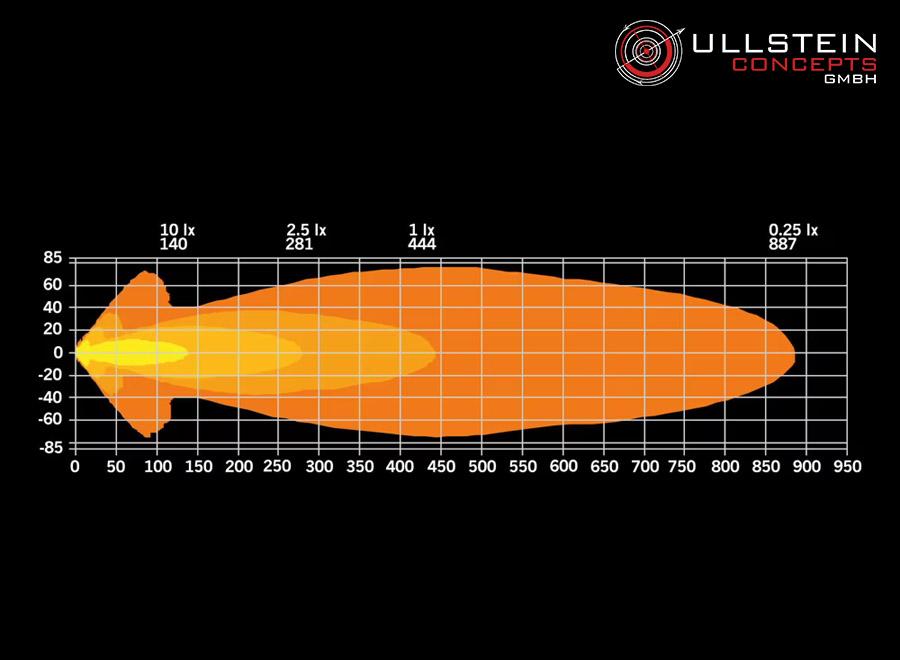

Light distance at 1lux: 444
Color temperature: 6500K
IP rating: 67/69K
Housing color: Black
Lens color: Clear
LED color: Amber & White
Iradiation angle: Optimized
Position light: Yes
Cable length (mm): 1000
Bracket material: Stainless steel
Housing material: Aluminum
Lenght (mm): 216
Depth (mm): 76
Height with bracket (mm): 213.7
Operating temperature: -35 - +60°C
ADR-approved: No
Approved: Yes
Type E Mark: R148, R149
Reference Number (Ref.): 50
EMV: ECE R10
