Strands - SIBERIA Night Ranger 9"

Strands - SIBERIA Night Ranger 9"

LED Driving Lights 20400lm | LED Light Bar ECE R112 E-Approved

Product number: 208-809188

Description

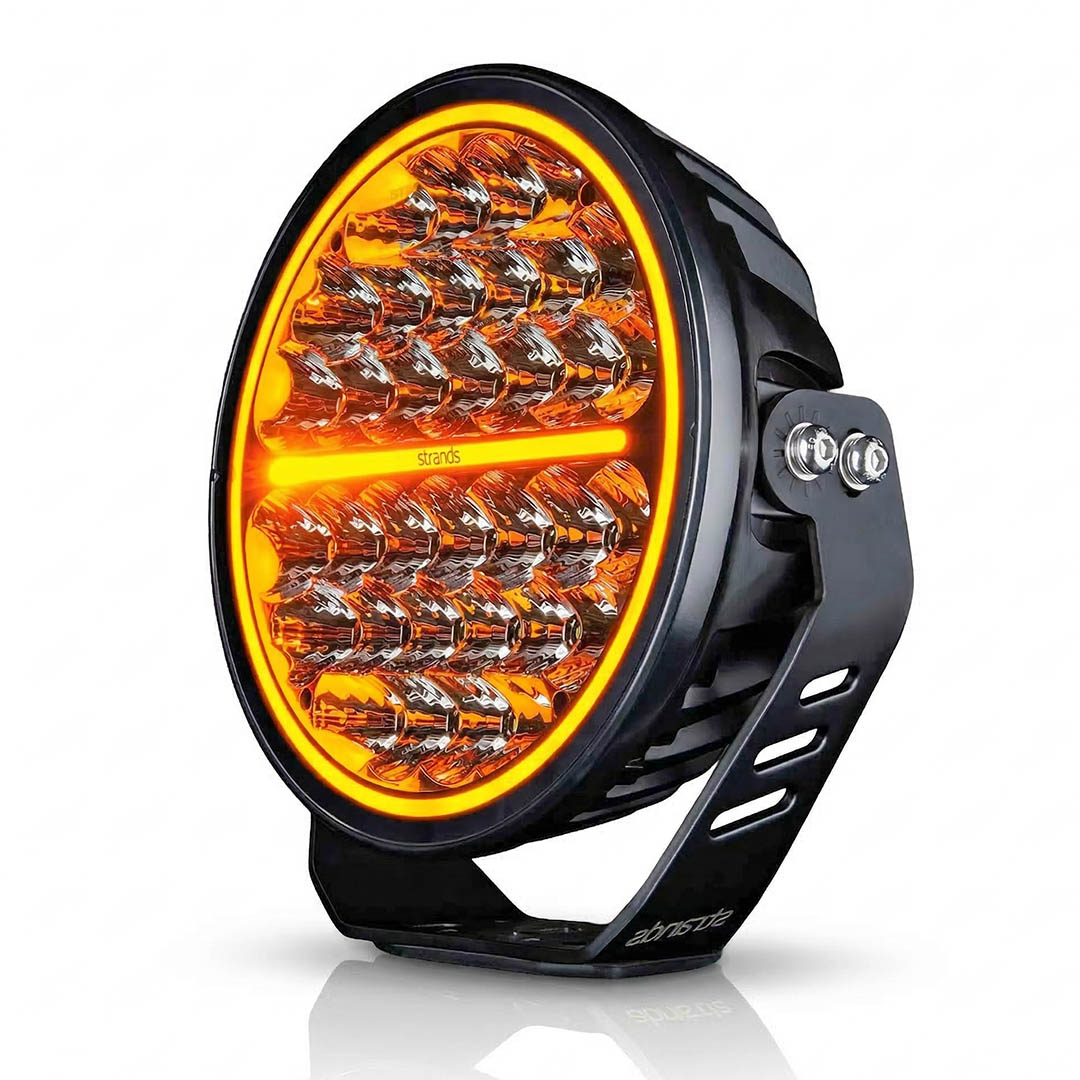

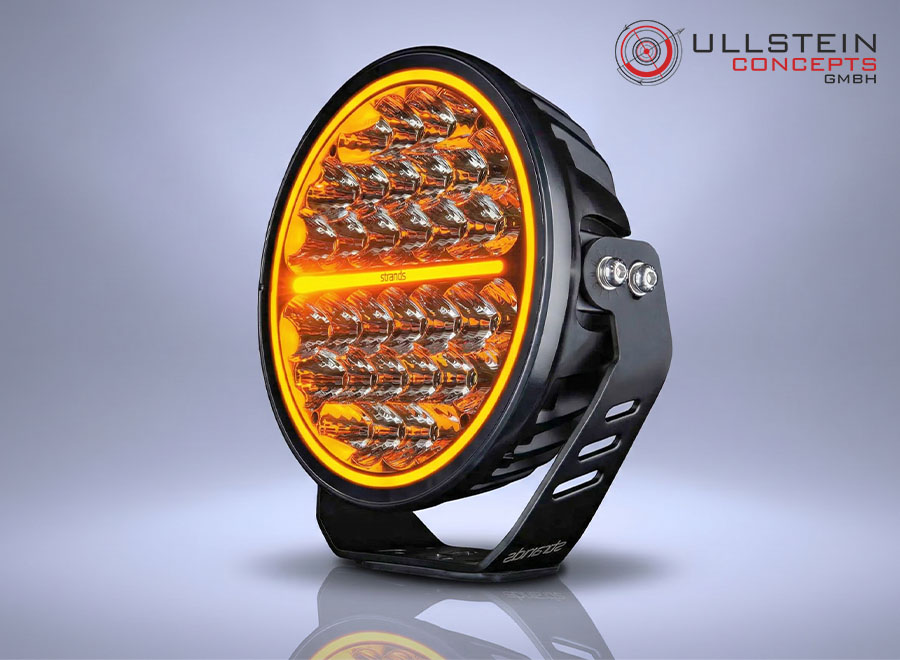

Strands - Siberia Night Ranger: Large 9 inch round offroad LED driving lights. Approved as driving lights according to ECE R112 and additionally as a position light according to ECE R7

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.


Voltage 9-32V DC
Consumption 95W
Theoretical lumen 20400
Actual lumen 13377

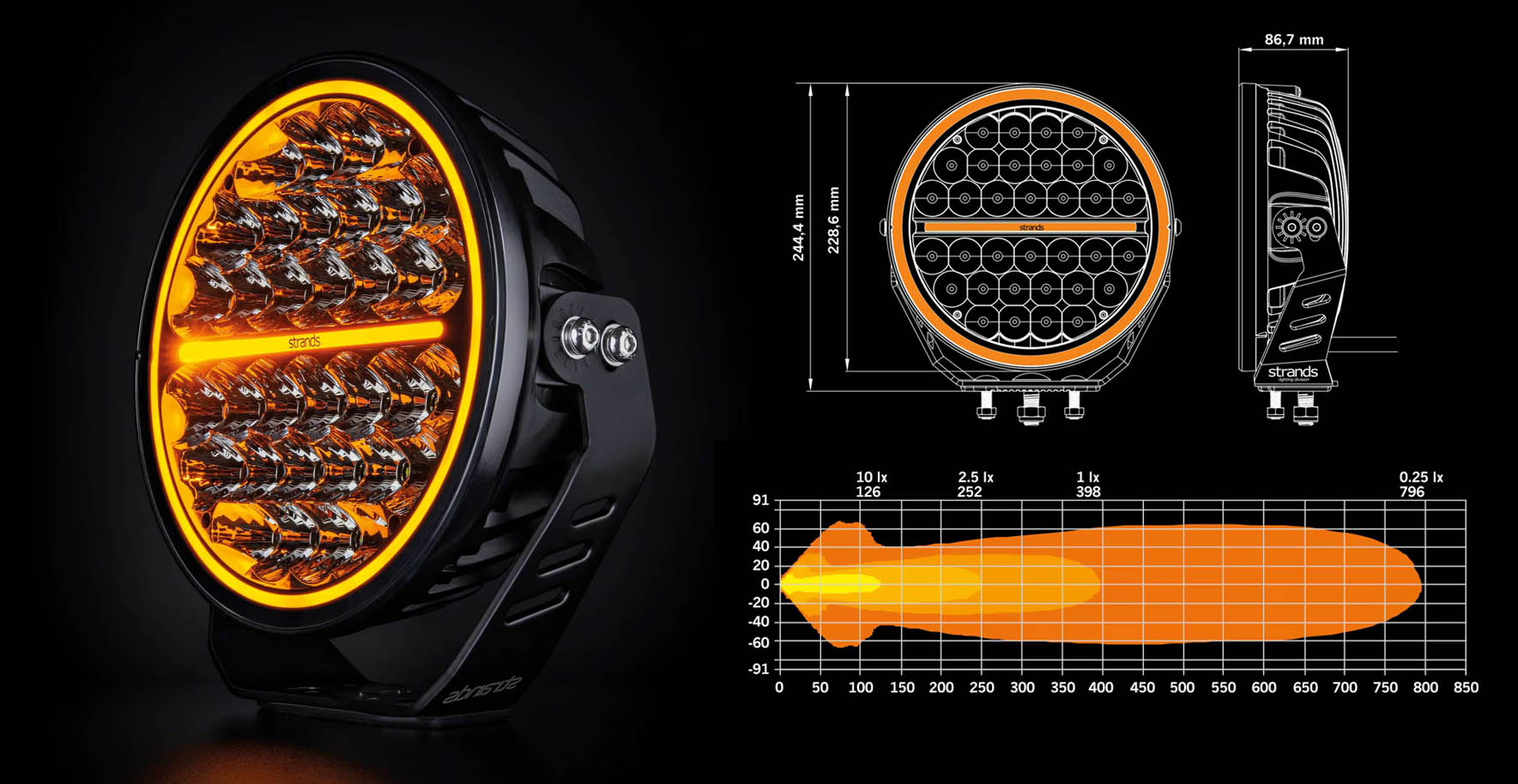

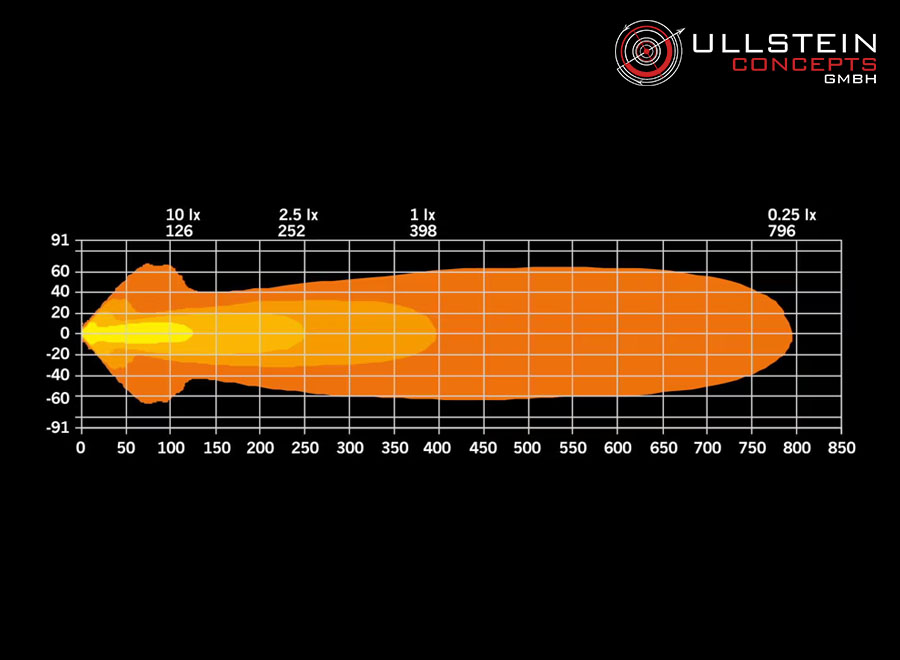

1 Lux @ 465m
IP-Class IP67/IP69K
Beam pattern Flood

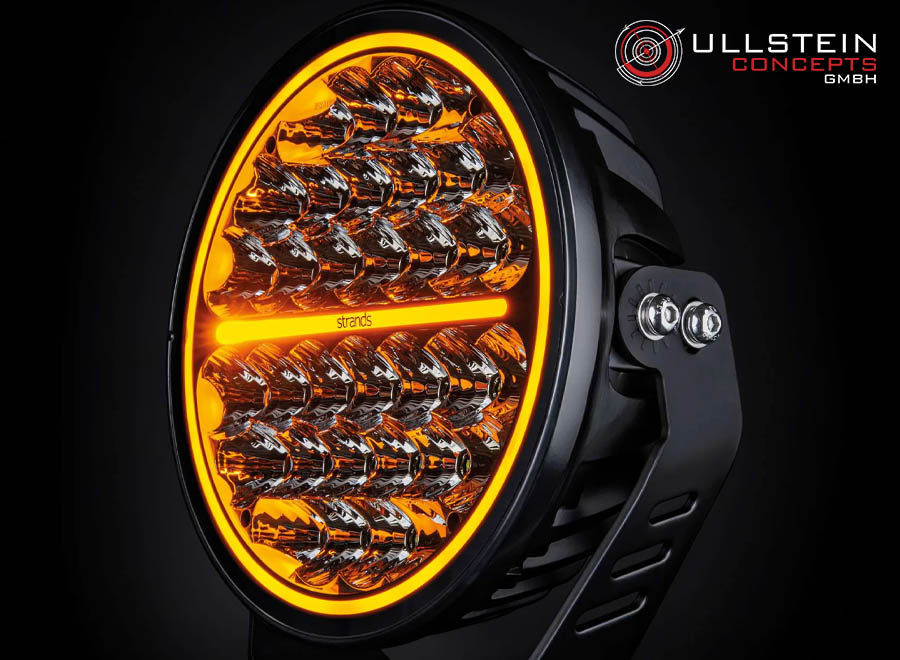

Position light Yes, amber and white

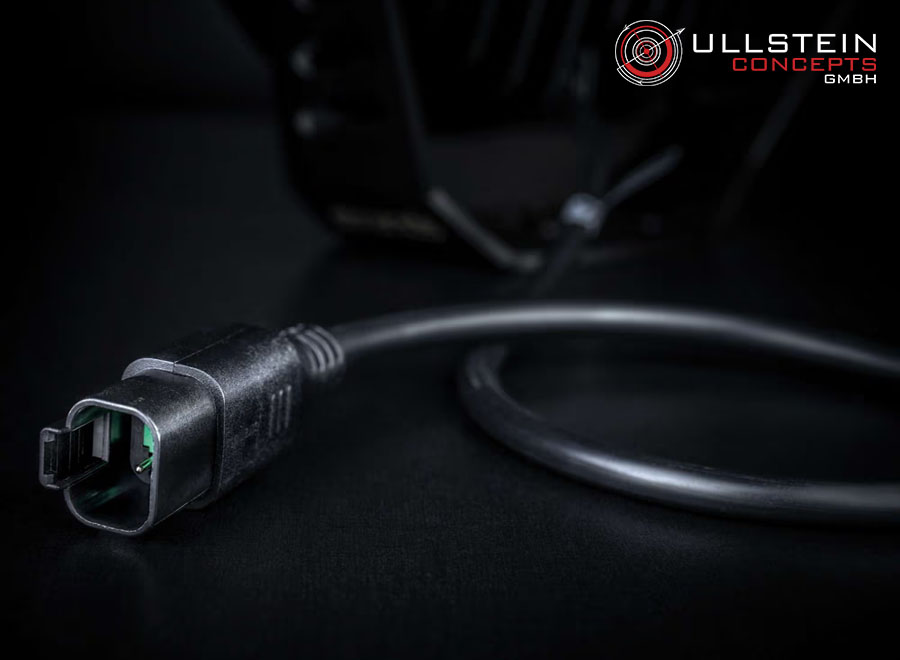

Connection DT-4
Cable length 500mm
Material housing Aluminium
Material lens Polycarbonate

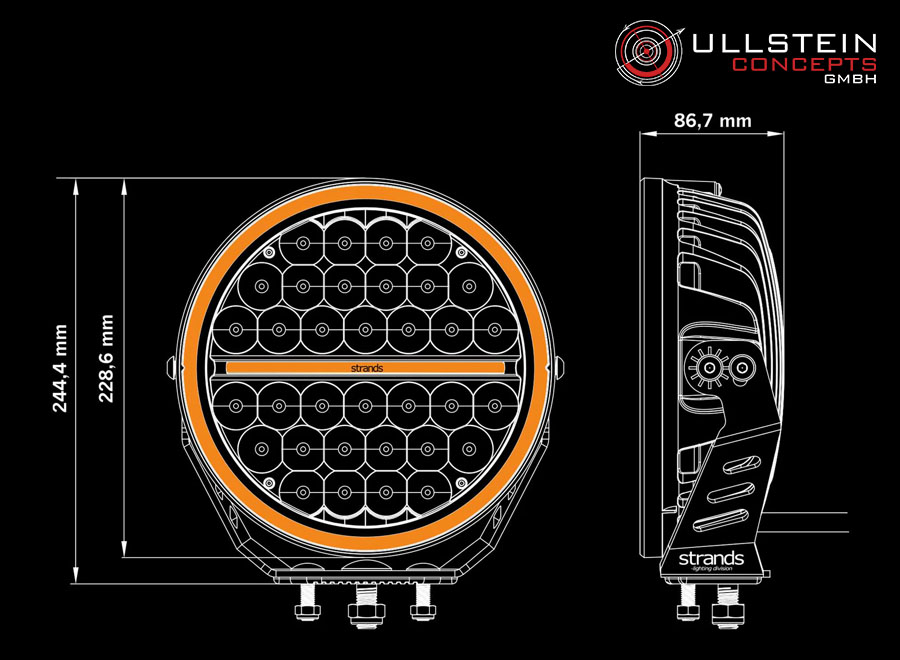

Lenght 228,6mm
Depth 86,7mm
Height 228,6mm
Height including bracket 249,3mm
Operating temperature -20°C - +45°C
E-approved ECE R112 R7
REF 30
EMC-Certificate ECE R10
