Strands - FIREFLY 9" Black

Strands - FIREFLY 9" Black

LED spotlight 16800lm | LED auxiliary headlight with E-mark ECE R148 R149

Product number: 208-270955

Description

Strands Firefly-a headlamp that stands out by harmonizing with the vehicle.

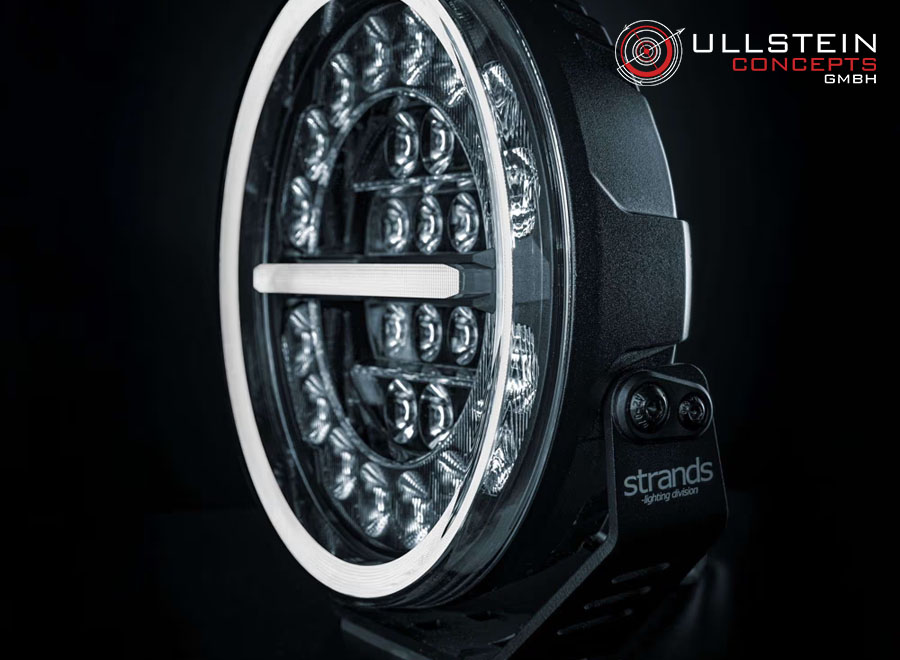

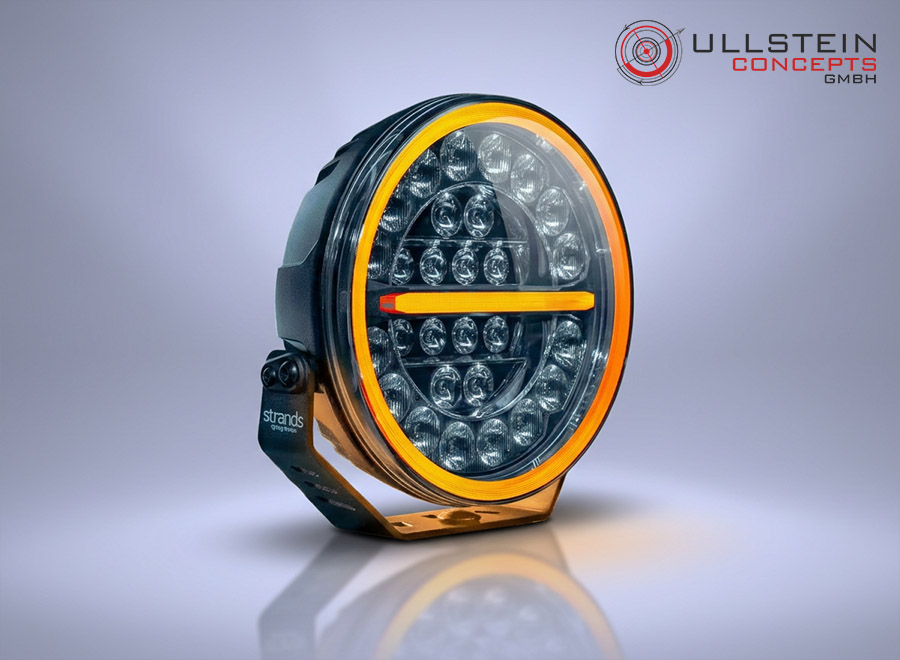

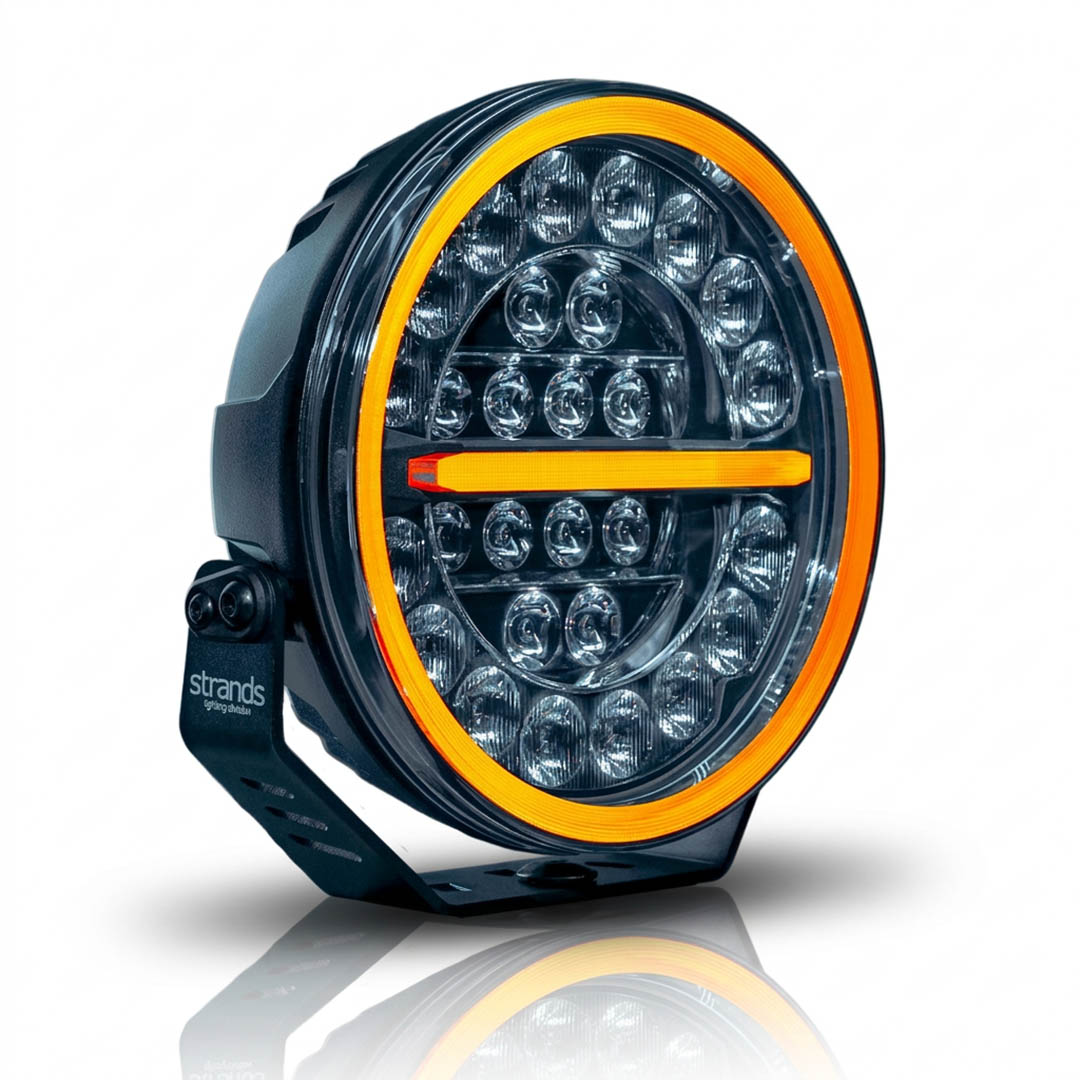

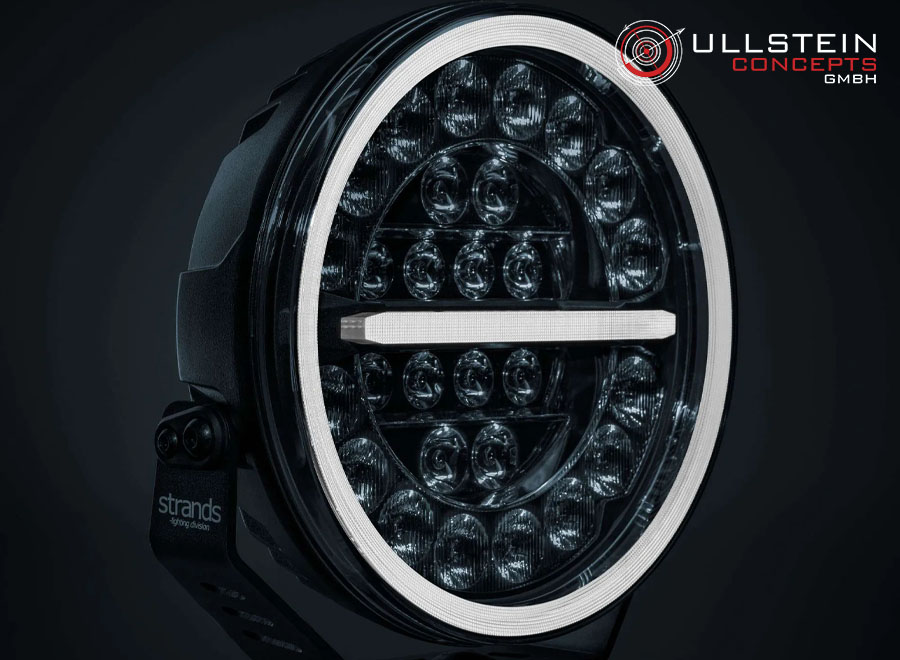

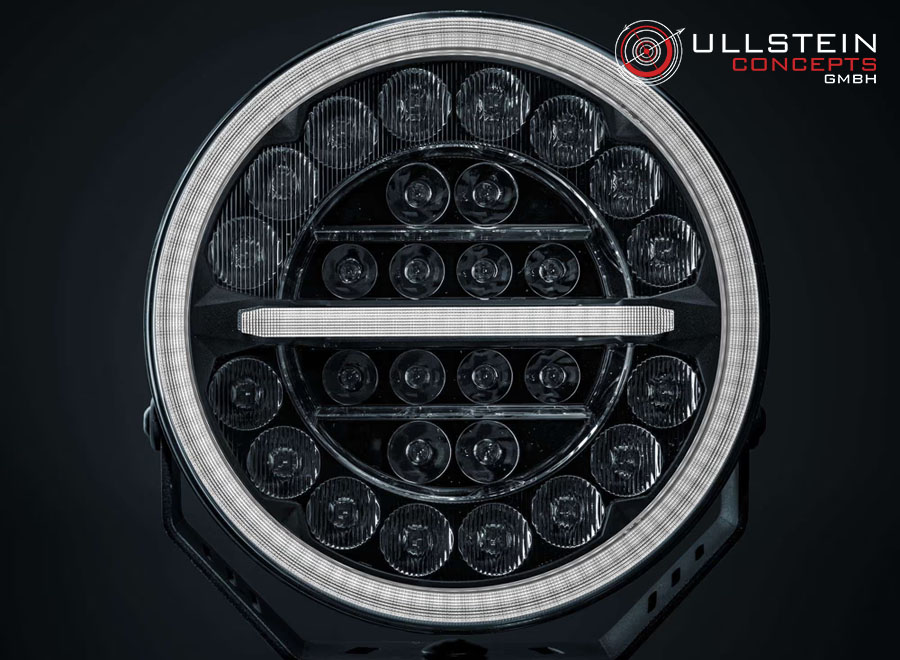

The 12076 lumens of pure white light accompany you up to 500 meters with precision and clarity. The unique design with the position light framing LEDs provides a bright halo effect like you would expect from a sunset;

Protected from external agents, the lens is made of polycarbonate, the light is E verified and waterproof according to the highest IP standards;

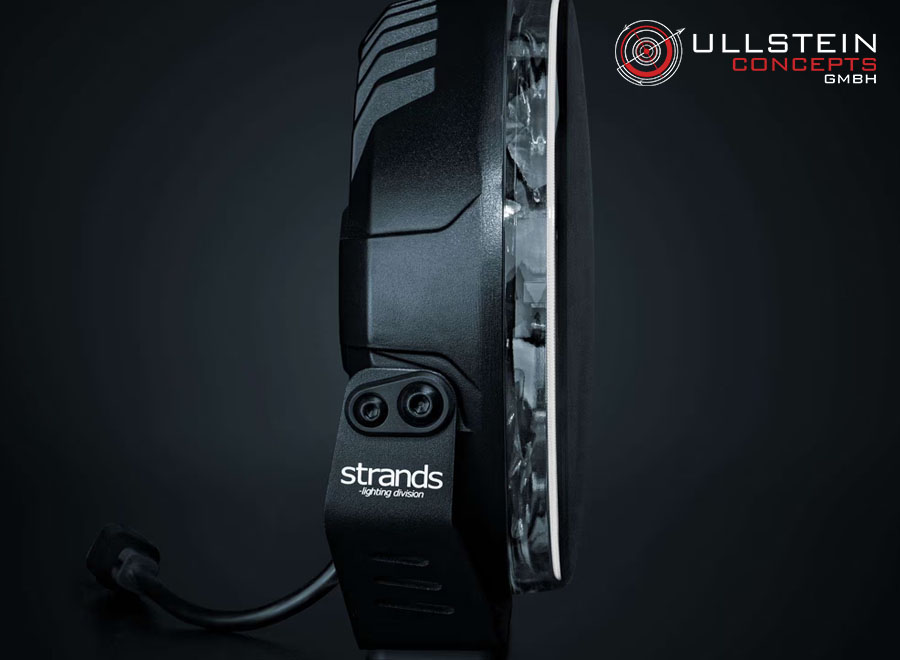

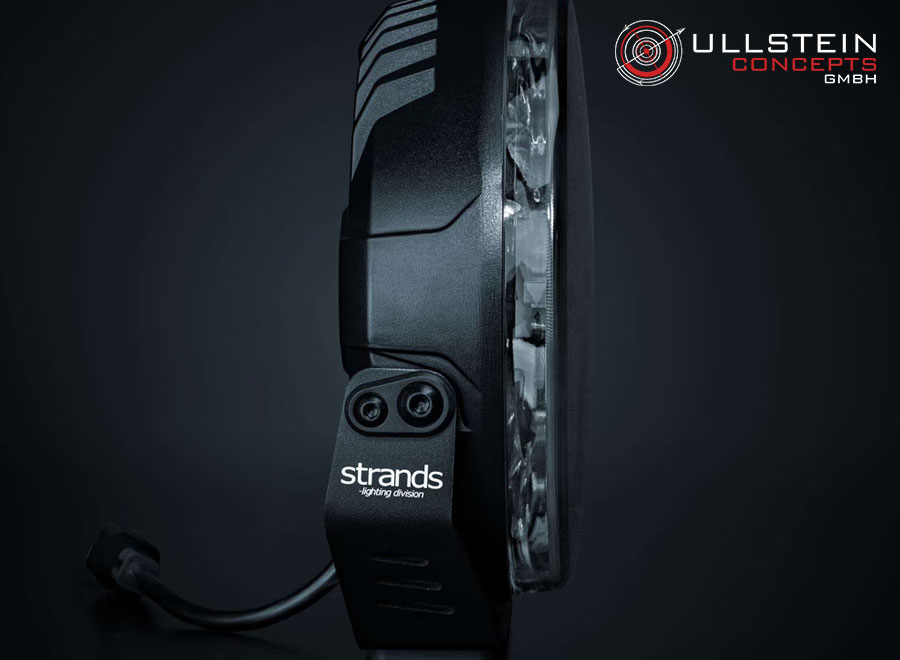

Installation of Firefly is simple. It mounts easily with the included bracket, screws and 1-meter cable. Simply connect it to the DT-4 contact included in the package. Perfect for all types of vehicles

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



TECHNICAL DATA:
Lamp type: LED
Voltage range (V DC):10-48V DC
Consumption (w) 12V: 146
Consumption (w) 24V: 142
Functions:Glare beam, amber+white position light
Nominal LED luminous flux (calculated): 16800
LED luminaire luminous flux (measured): 12076

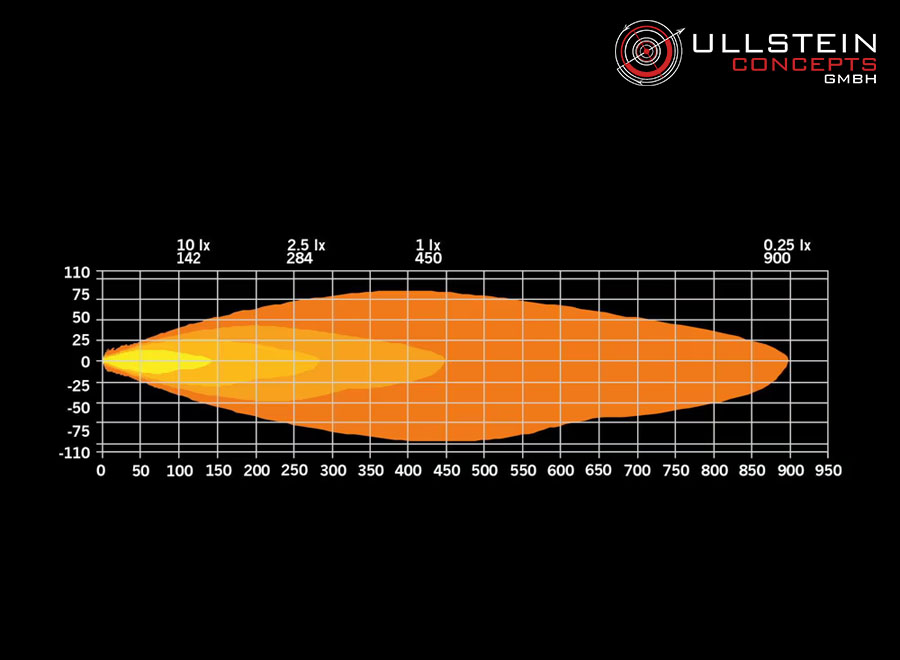

Light distance at 1lux: 455
Color temperature: 6000 K
IP rating: 67
Housing color: Black
Lens color:clear
LED color: Amber &;; white
Iradiation angle:Combo

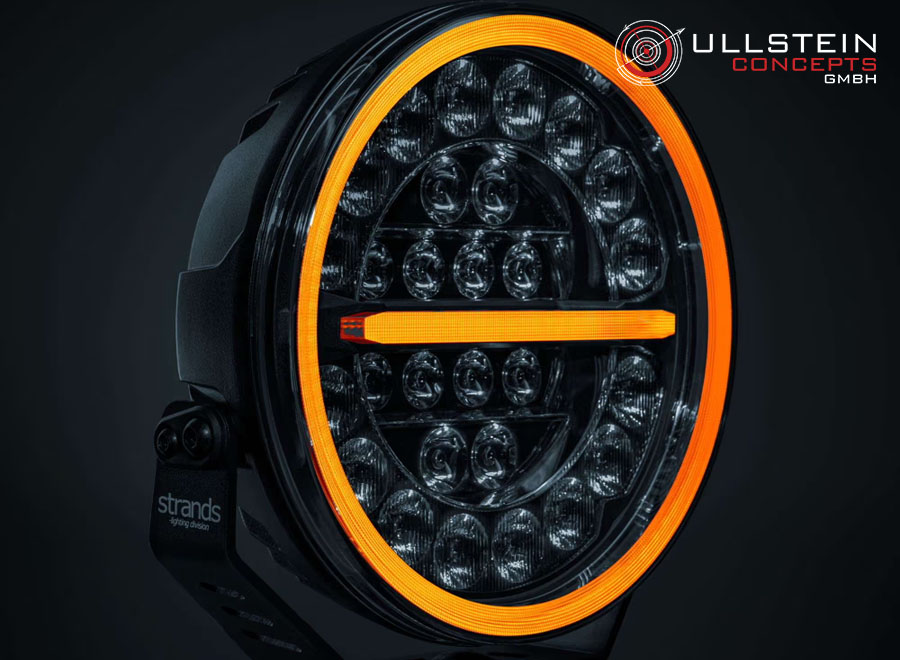

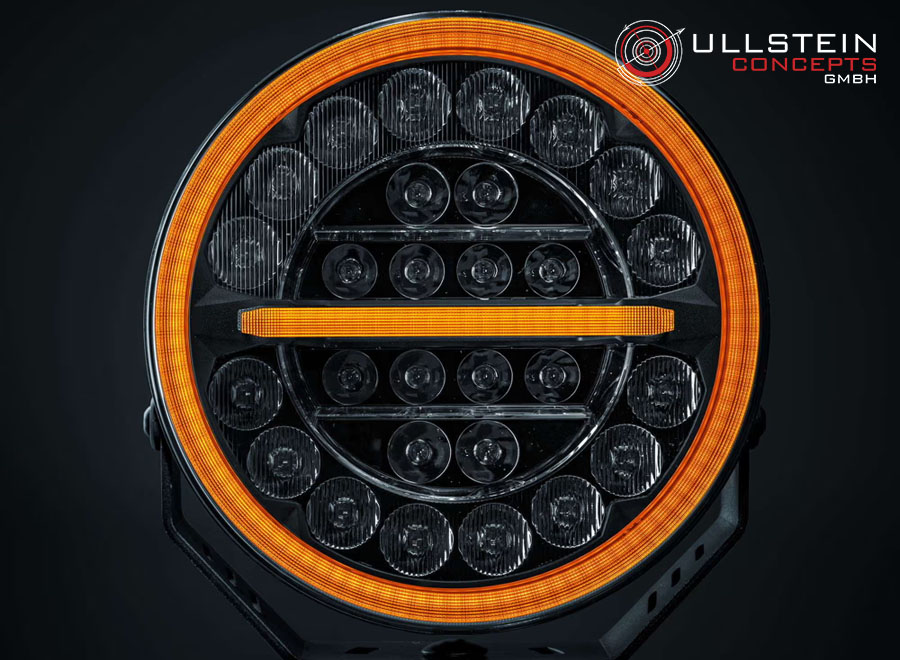

Position light:Yes, Amber &;; white
Connection:DT4
Cable length (mm):1000
Bracket material:stainless steel

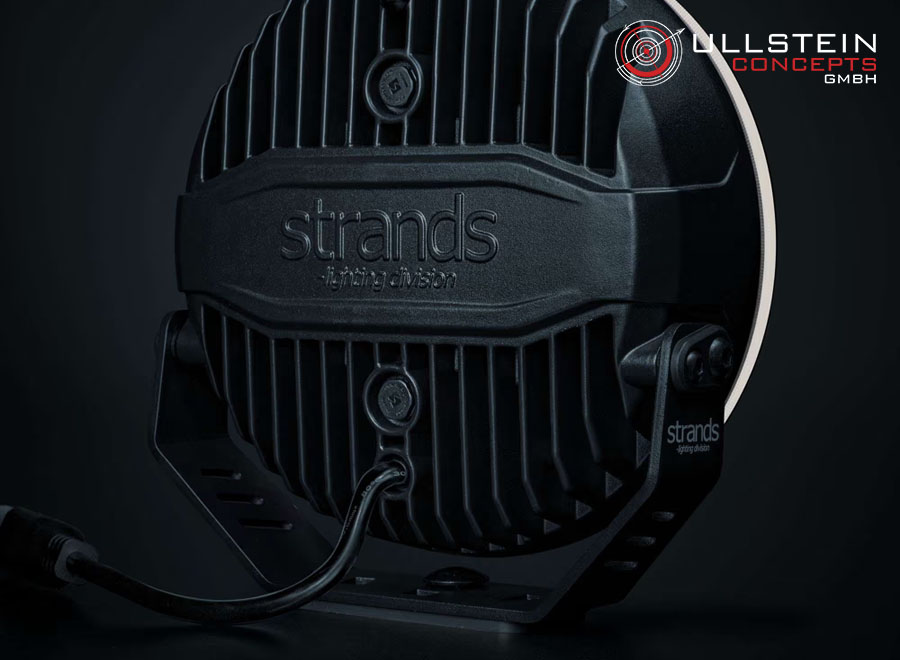

Housing material:aluminum
Reflector lens material:polycarbonate

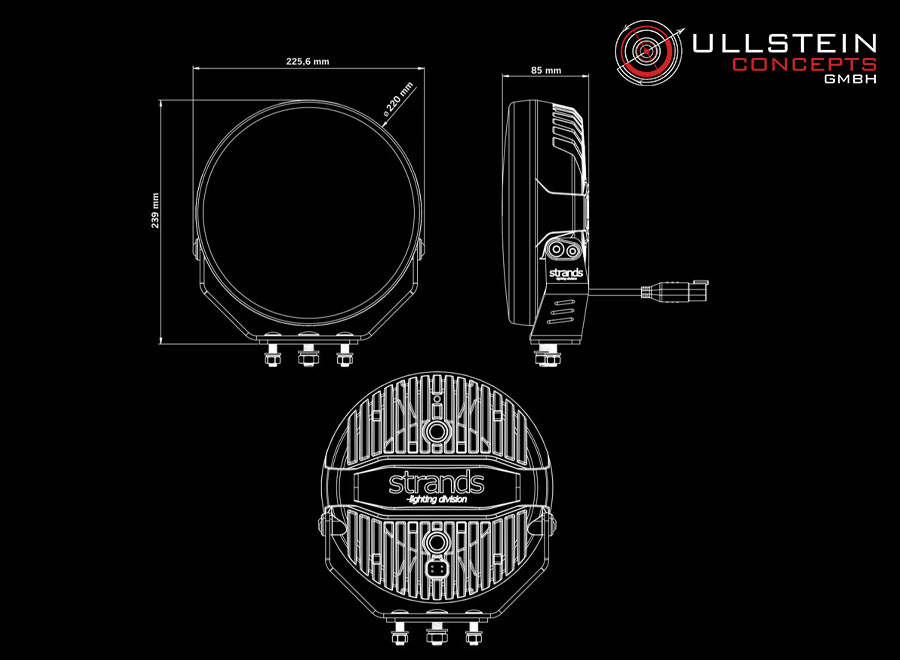

Length (mm):220
Depth (mm): 85
Height: 220
Height with bracket (mm): 239
Diameter (mm): 220
Operating temperature: -40°C - +65°C
ADR-approved: No
ApprovedE: Yes
Type E Brand: R148, R149
Reference Number (Ref.):50
EMV:ECE R10

Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
