Strands - Freedom Maximum Position 7″

Strands - Freedom Maximum Position 7″

LED spotlight 10800lm | LED auxiliary headlight with E-mark ECE R148 R149

Product number: 208-270932

Description

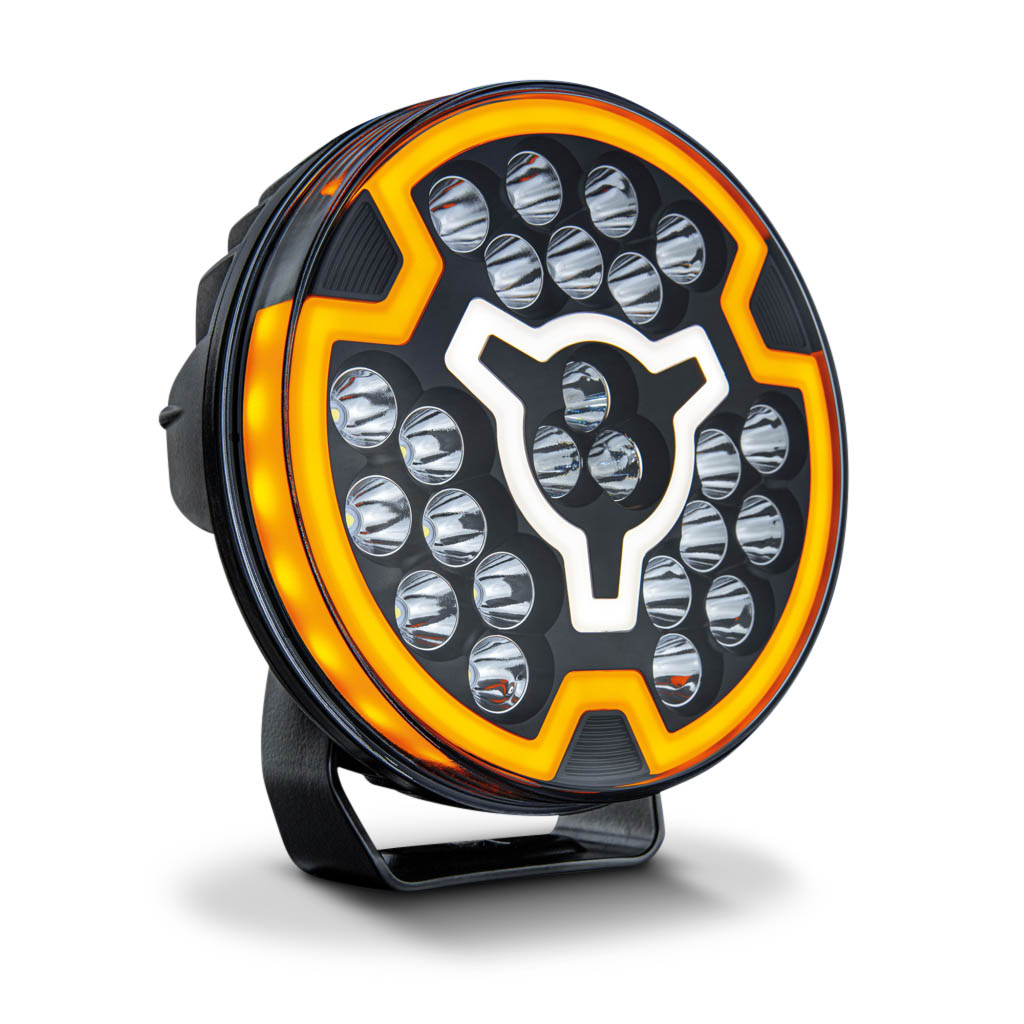

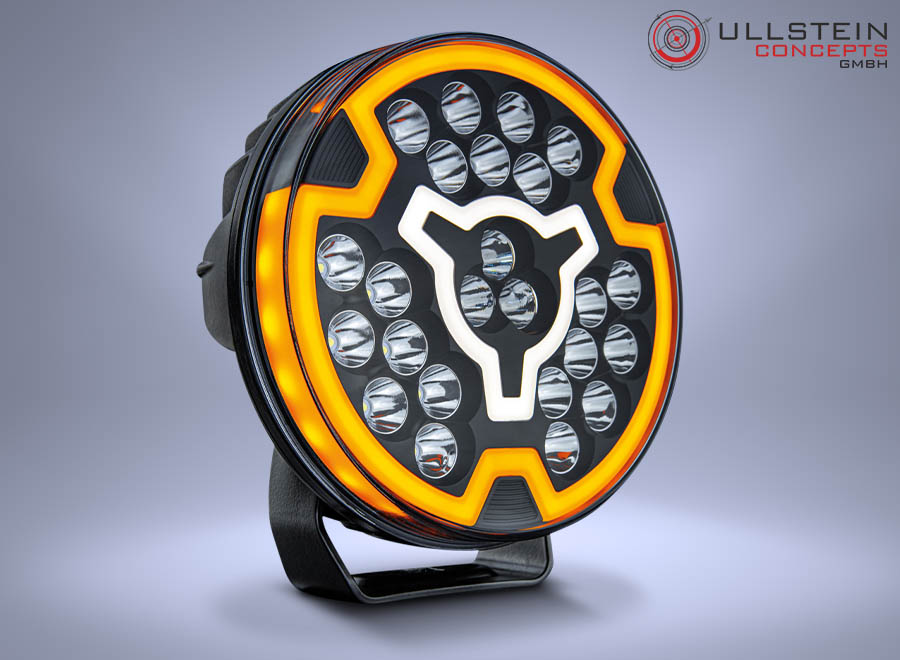

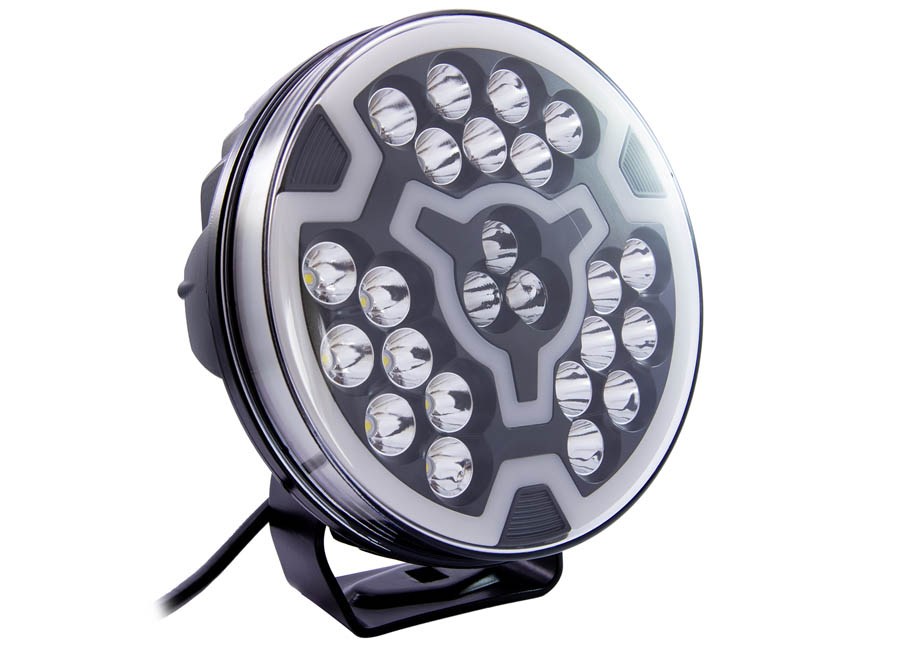

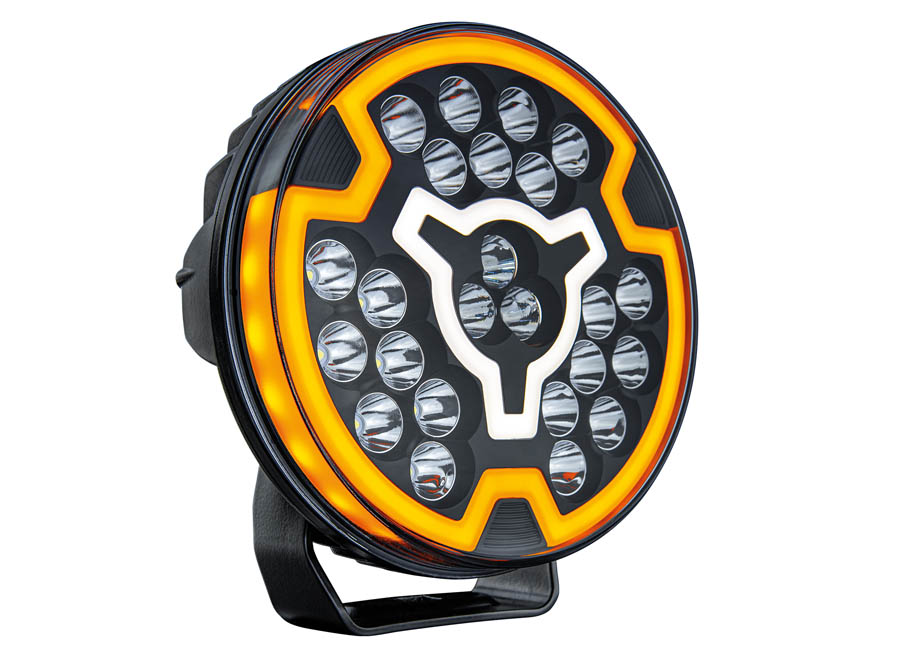

The Strands Freedom Maximum Position 7 inch is a LED driving light in a brand new stunning design.


With E-mark ECE R148 and R149 and a reference number of only 20, ideally suited as an auxiliary headlight.


Functions: High beam, position light, marker light.



ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



TECHNICAL DATA:


Lamp Type: LED
Voltage range (V DC): 12-24V DC
Consumption (w) 12V: 102
Consumption (w) 24V: 103
Functions: High beam, position light, marker light
Nominal LED luminous flux (calculated): 10800
LED luminaire luminous flux (measured): 9761

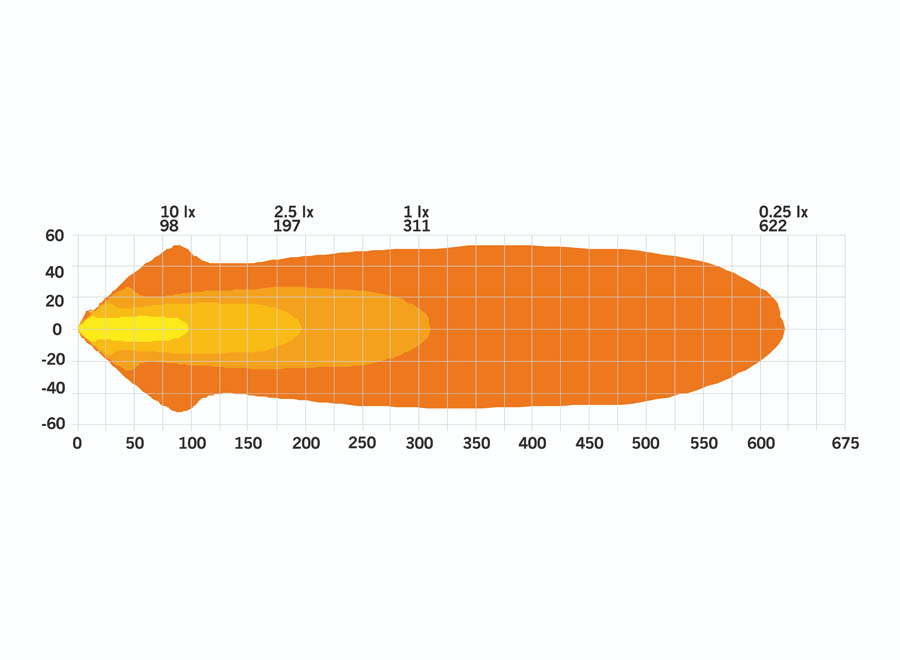

Light distance at 1lux: 311
Color temperature: 5700 K
IP rating: IP6K9K
Housing color: Black
Lens color: Clear
LED color: Amber & White
Iradiation angle: Combo
Position light: Yes, Amber & White
Cable length (mm): 3000
Bracket material: Stainless steel
Housing material: Aluminum
Depth (mm): 62
Height with bracket (mm): 193.7
Diameter (mm): 178.8
Operating temperature:-40 - +40°C
ADR-approved: No
Approved: Yes
Type E Mark: R148, R149
Reference Number (Ref.): 20
EMV: ECE R10

Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
270932
