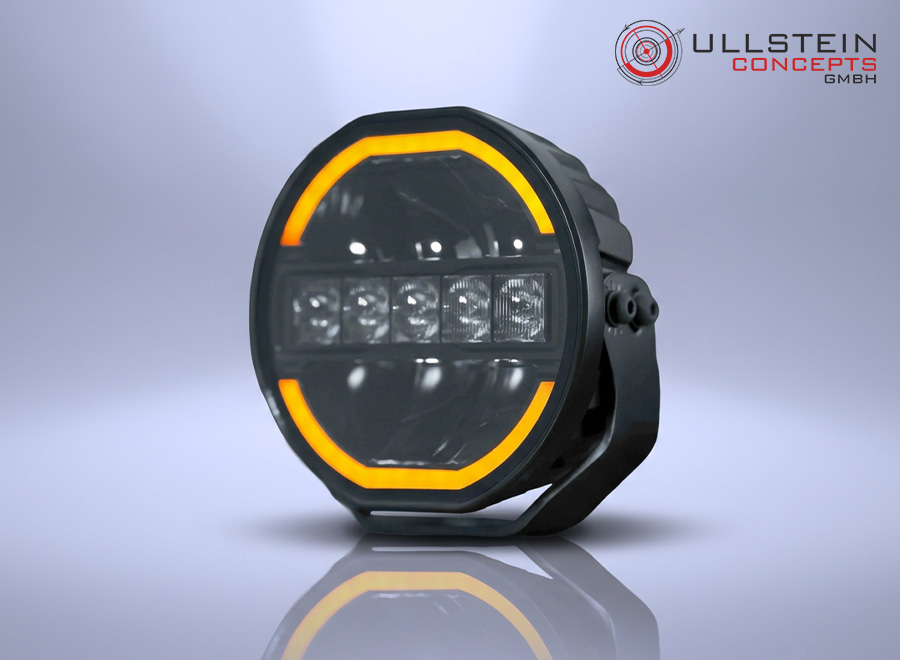

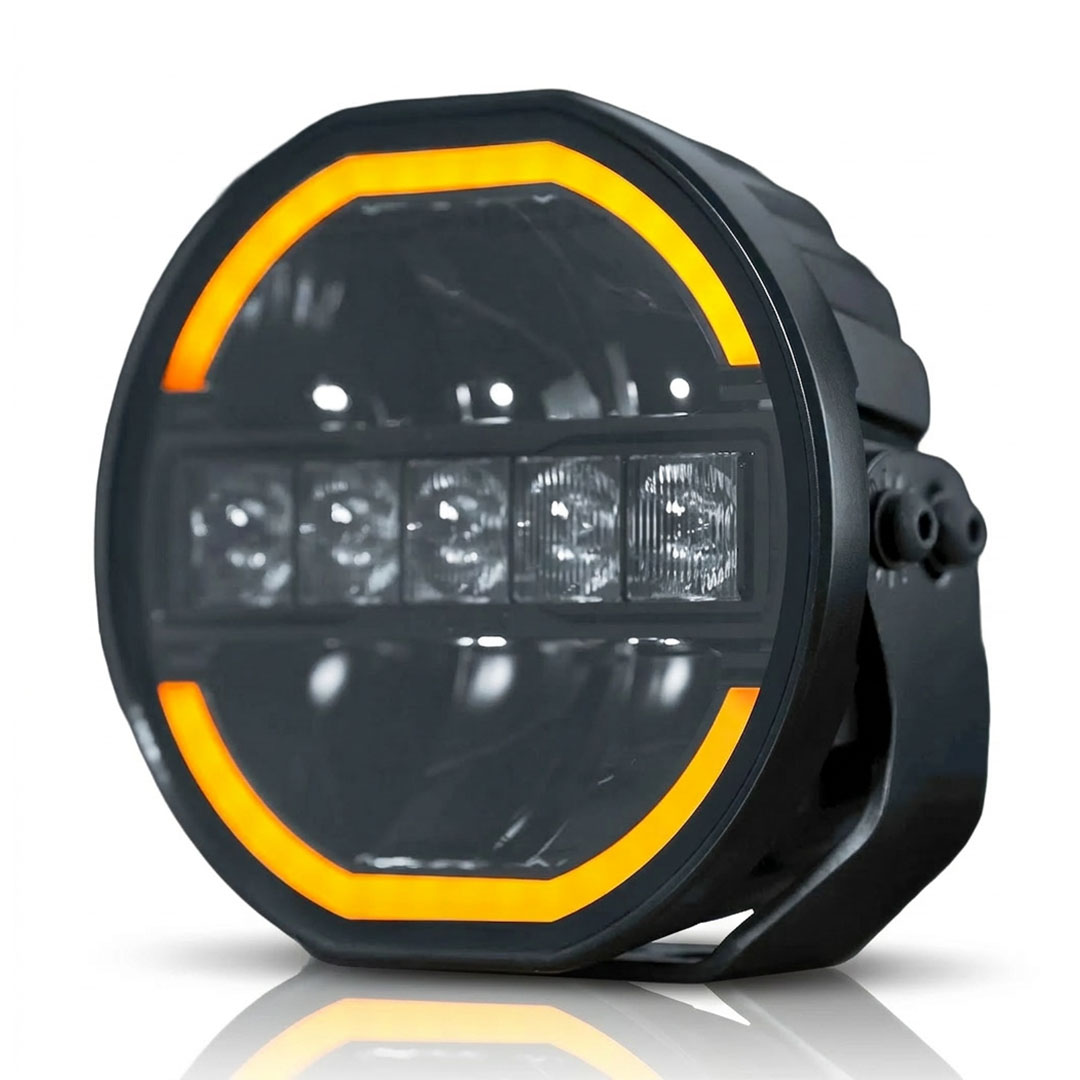

Strands - SIBERIA Skylord Schwarz 7"

Strands - SIBERIA Skylord Black 7"

2in1 high beam with ECE R148 R149 and worklight function - 1500lm / 5850lm

Product number: 208-270947

Description

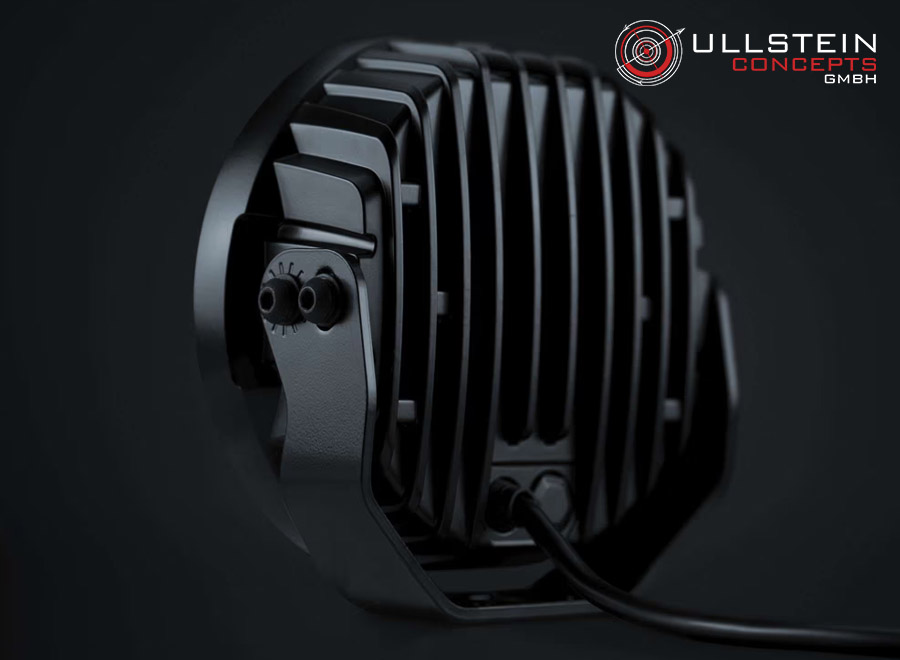

VIBRATION AND SHOCK RESISTANT
The Siberia Skylord driving lamp has reinforced protection to withstand vibration and shock. In addition, the Skylord spotlight offers very high electromagnetic compatibility with CISPR25 Class 3.

SPECIAL COATING FOR HARSH CLIMATES
Whether you're out in the pouring rain or on muddy trails, the Siberia Skylord special coating protects the housing from salt and dirt.

XPERIENCE MODE
Optimized for both length and width, the Skylord Combo beam's beam angle is incredibly powerful. Choose between an E-approved mode with road approval and Xperience (worklight) mode, with a visibility range of 628 meters.

MODERN DESIGN

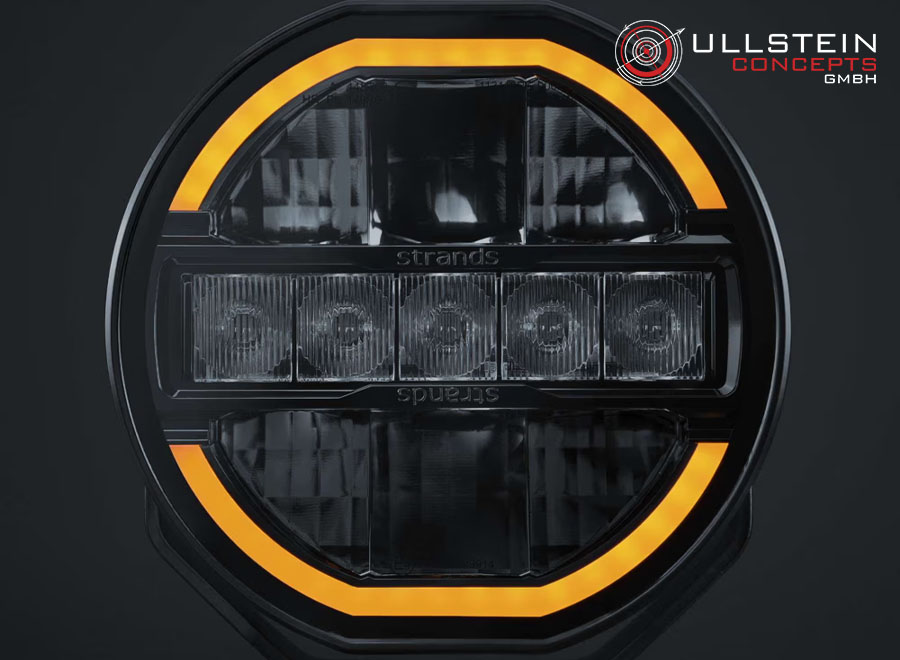

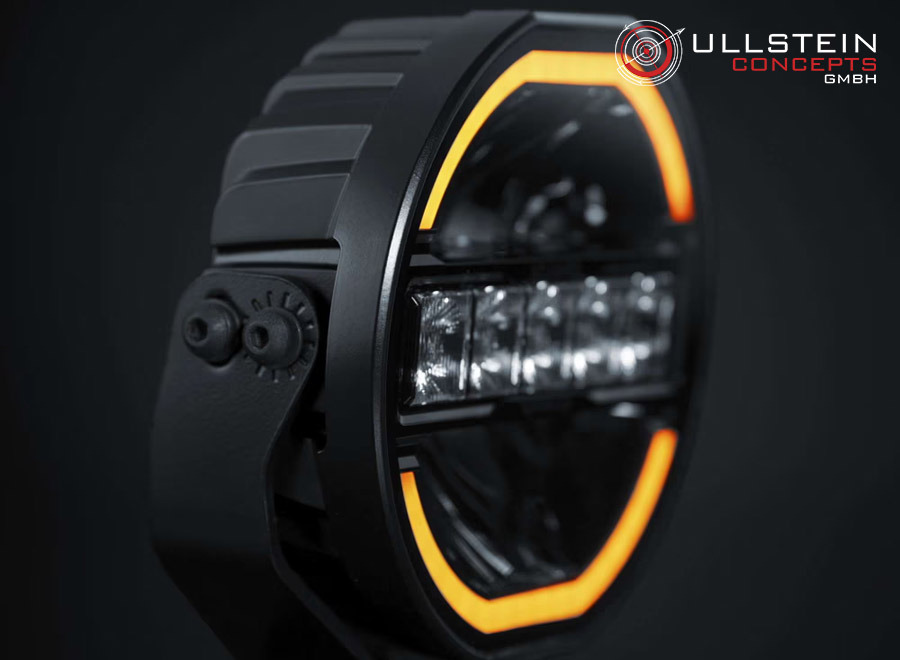

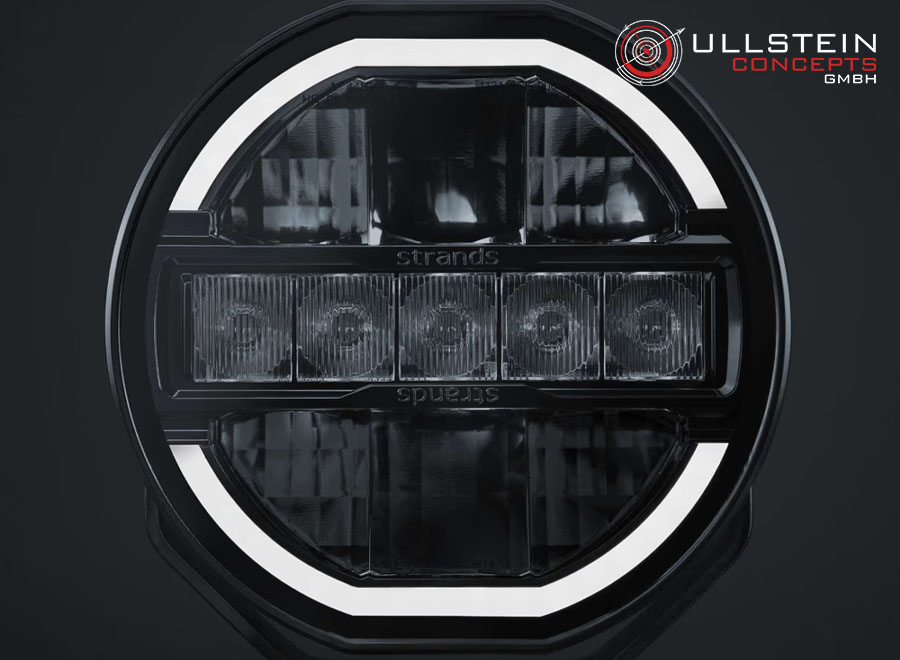

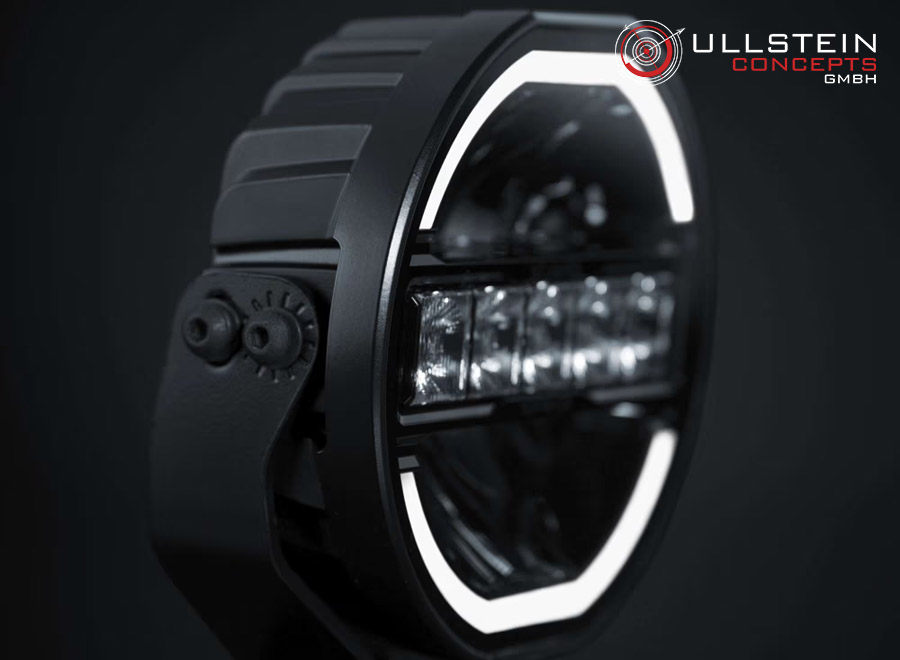

The modern and low-profile design fits perfectly with most vehicle types and enhances the overall appearance of your car. The integrated Siberia Duo position light, positioned in a circle around the LEDs, also creates an impressive lighting and design effect.

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.

Product Specification:

  • Type of Lamp LED
  • PCS LED´s 24
  • Voltage (V DC) 10-38V DC
  • Theoretical effect (w) 12V 108W
  • Theoretical effect (w) 24V 108W
  • Consumption (w) 12V E-mode:21W Experience mode:81W
  • Consumption (w) E-mode:20.5W Experience mode:79W
  • Theoretical lumen 8250
  • Actual lumen E-mode:1500 Experience mode:5850

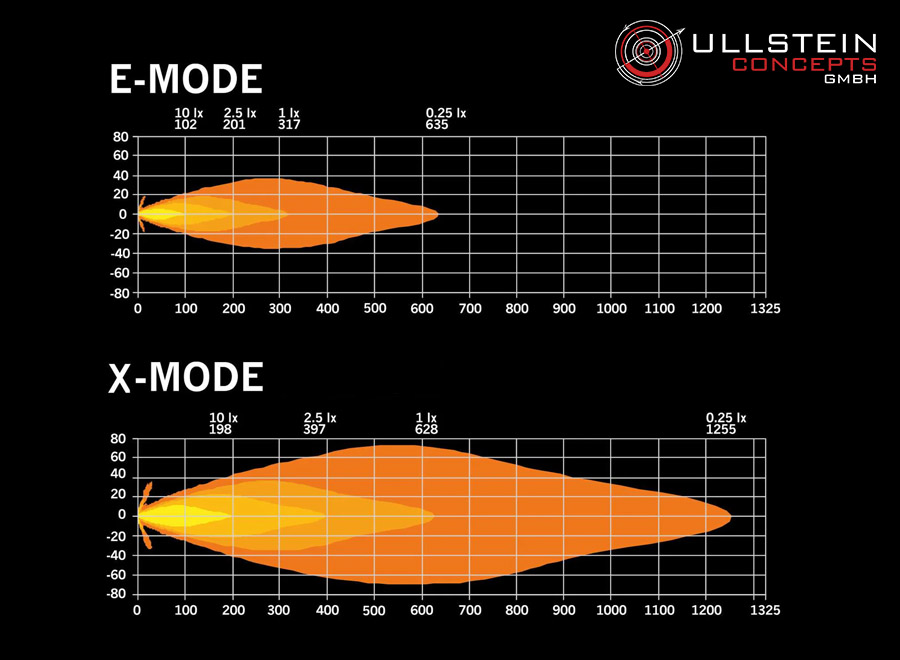

  • 1 LUX @ m E-mode:317 Experience mode:628
  • Kelvin 5700
  • IP-class 69K, 68
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White
  • Beam pattern Combo
  • Position light Yes
  • Connection DT4
  • Cable length (mm) 500

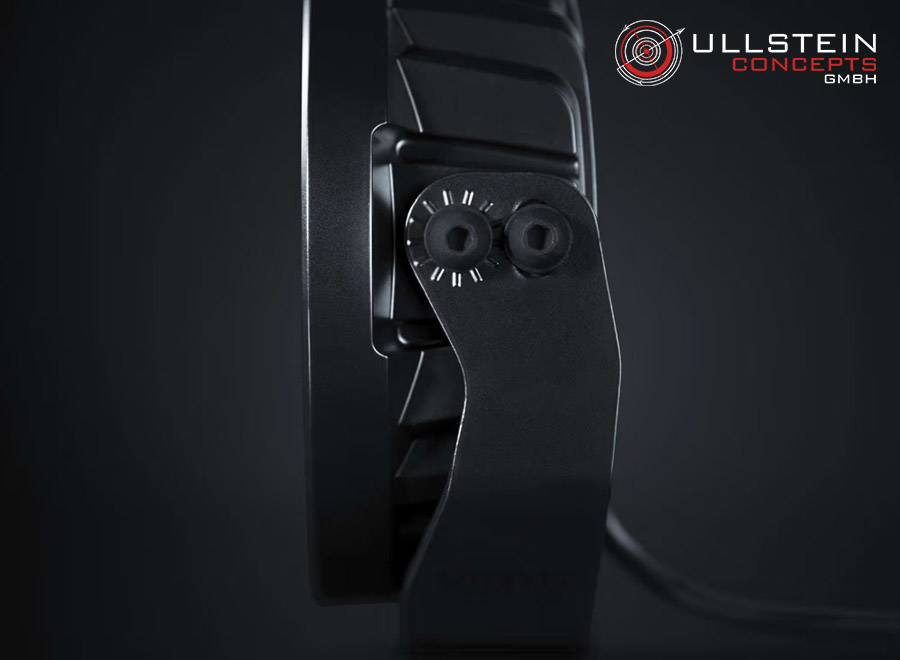

  • Material bracket Stainless steel
  • Material housing/chassi Aluminium
  • Material lens Polycarbonate

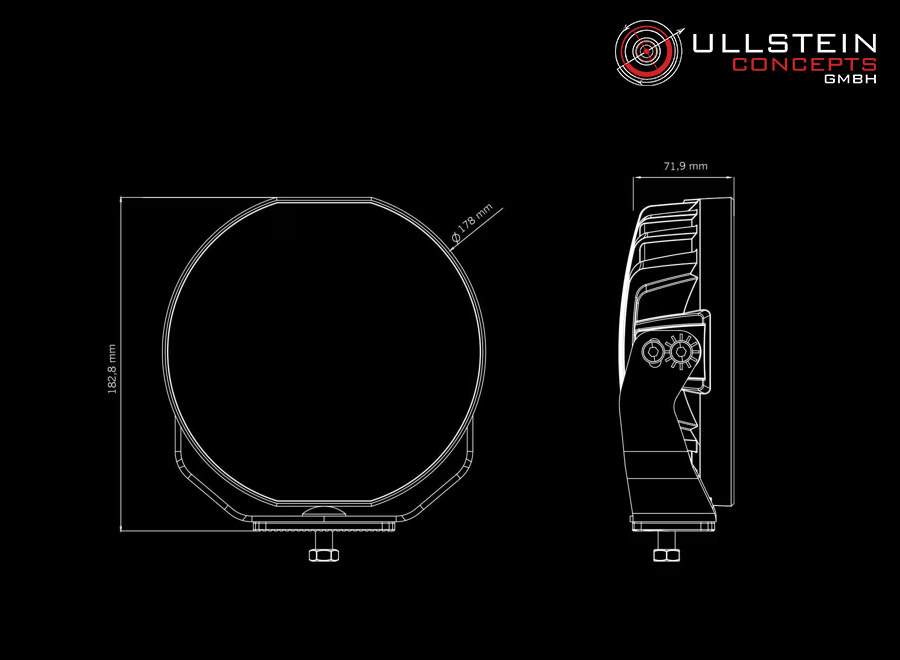

  • Length (mm) 178
  • Depth (mm) 71,9
  • Height (mm) 170,3
  • Height including bracket (mm) 182,8
  • Diameter (mm) 178
  • Operating temperature -30°C - +65°C
  • ADR-approved No
  • E-approved Yes
  • According to regulation ECE R148, R149
  • Reference number 25
  • EMC ECE R10, CISPR25 Class 3
