Strands - SIBERIA XP Driving Light 7″

Strands - SIBERIA XP Driving Light 7″

2in1 high beam with E-mark and offroad mode 1540lm / 5710lm

Product number: 208-270985
shipping Pre-order (available from approx. 2025/01)

Description

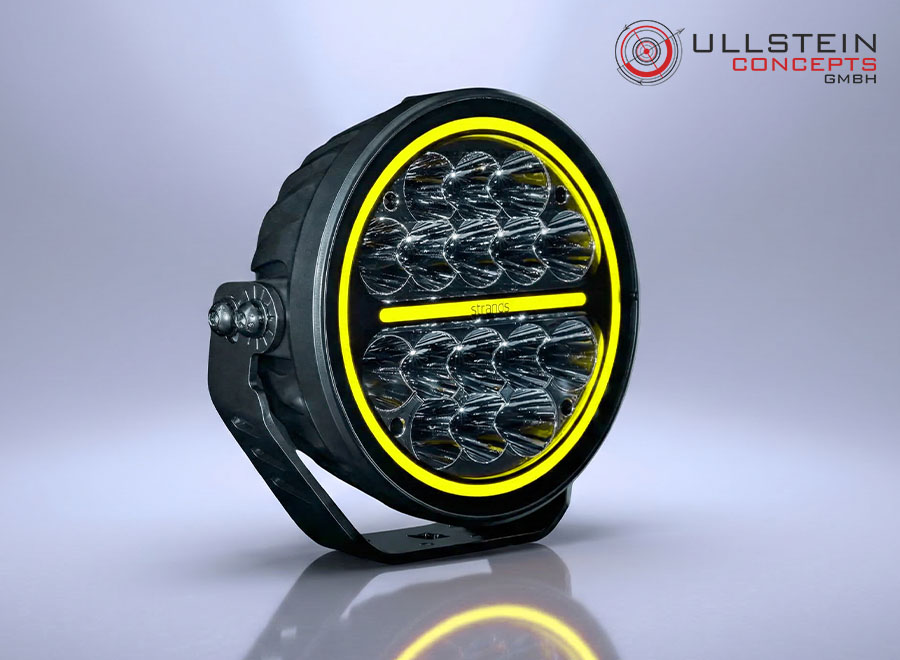

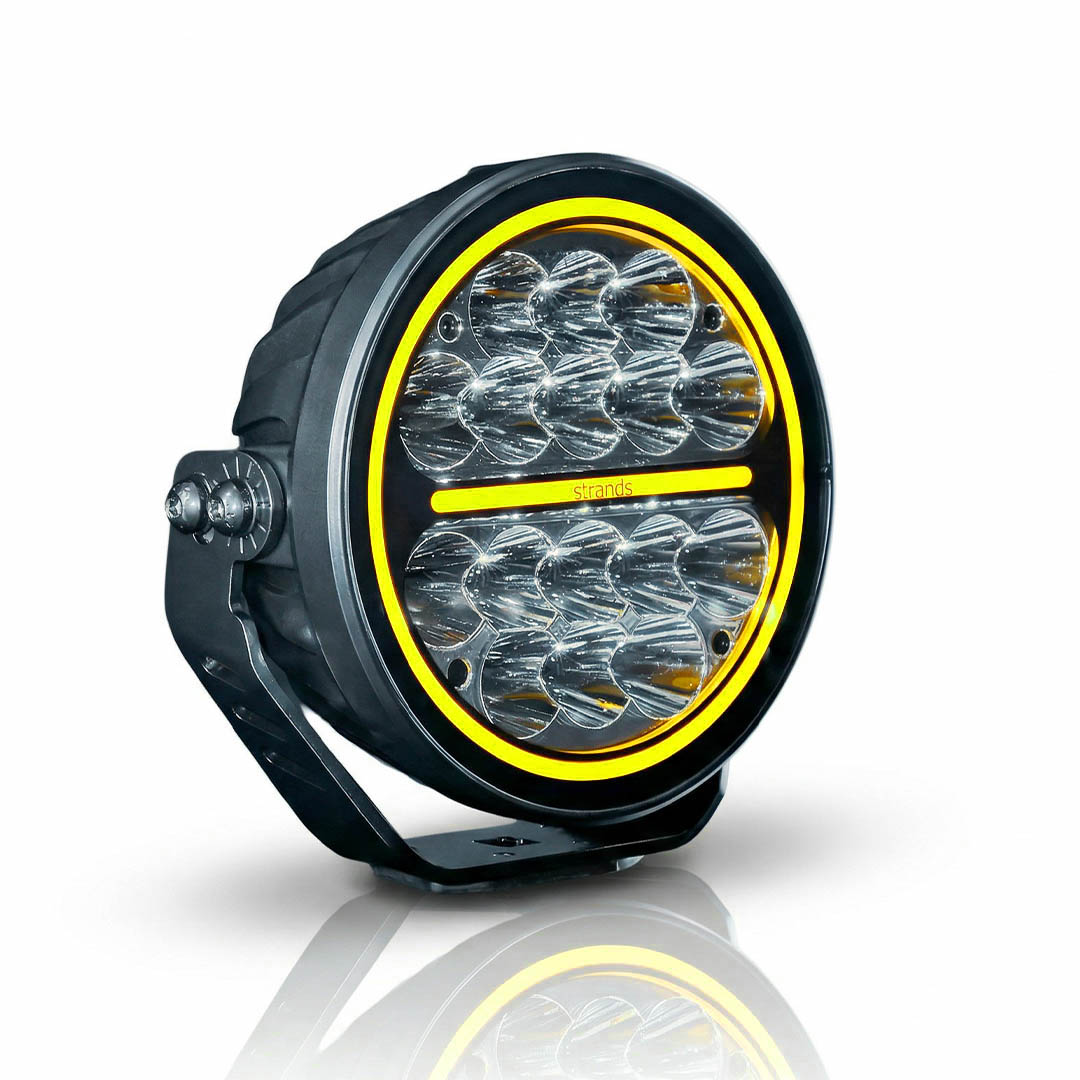

The Siberia XP 7-inch LED Driving Light with ECE R148 (R7)- R149 (R112) Road Approval

With an impressive 1,540/5,710 active (measured) lumens, the round Siberia XP 7 inch LED additional high-beam headlight turns night into day!

Equipped with Duo Mode, the LED Driving Light comes with an E-mode with E-approval for operation on public roads and an Xperience mode for unthrottled power for off-road use.

The E-mode high beam spotlight, with a beam angle adapted to road conditions and reduced light output, achieves a visibility range of 342 metres with 1,540 active lumens.

The unthrottled Xperience Mode achieves the maximum output with 5,710 measured lumens and generates a visibility range of 662 metres.

You also have the option of adjusting the light output using optionally available dark or amber lens covers.

The round XP 7 inch (approx. 18 cm) LED spotlight comes with a new yellow and white position light with a new Hello function. The Hello function, allows you to use the position lights as a light signal, e.g. to greet your friends on the road or to draw attention to your vehicle. Simply tap the high beam twice briefly and the Hello function is activated.

Tough material, IP68/IP69K rating and a new type of powder coating originally developed for oil rigs make the Strands LED driving light a long-lasting upgrade for any vehicle.

The DT-4 connector with 150mm cable makes the installation effortless.



PLEASE NOTE:

This LED driving lamp is E-approved in accordance with ECE R149 (R112) and R148 (R7) and may therefore be used as a driving light on public roads. In addition to the actual headlight approval, the installation rules on the vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.

TECHNICAL DETAILS:

Type of lamp LED
PCS LED´s 1
Voltage 9-40V DC
Theoretical effect (w) 24V 80
Actual lumen E-mode:1540 Xperience:5710
1 Lux @ E-mode:342 Xperience:662
Kelvin 5700K
IP-Class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Yellow
Beam pattern Extended Beam
Position light Yes, White and Yellow
Connection DT-4
Cable length 150mm
Material bracket Stainless steel
Material housing Aluminium
Material lens Polycarbonate
Depth (mm) 78,2
Height including bracket(mm) 194,1
Diameter (mm) 178
Operating temperature -30°C - +65°C
E-approved Yes
According to regulation ECE R148 (R7) R149 (R112)
EMC ECE R10
Reference value (Ref.) 20
Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
270985
